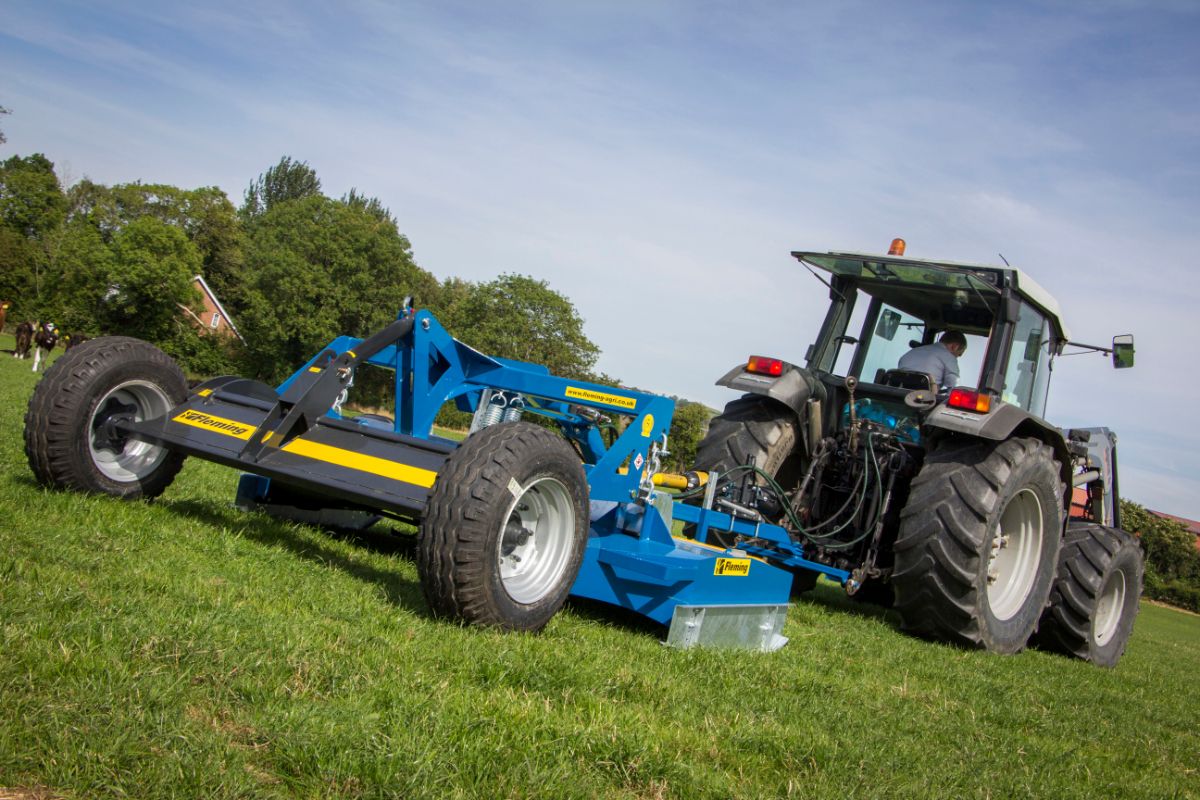

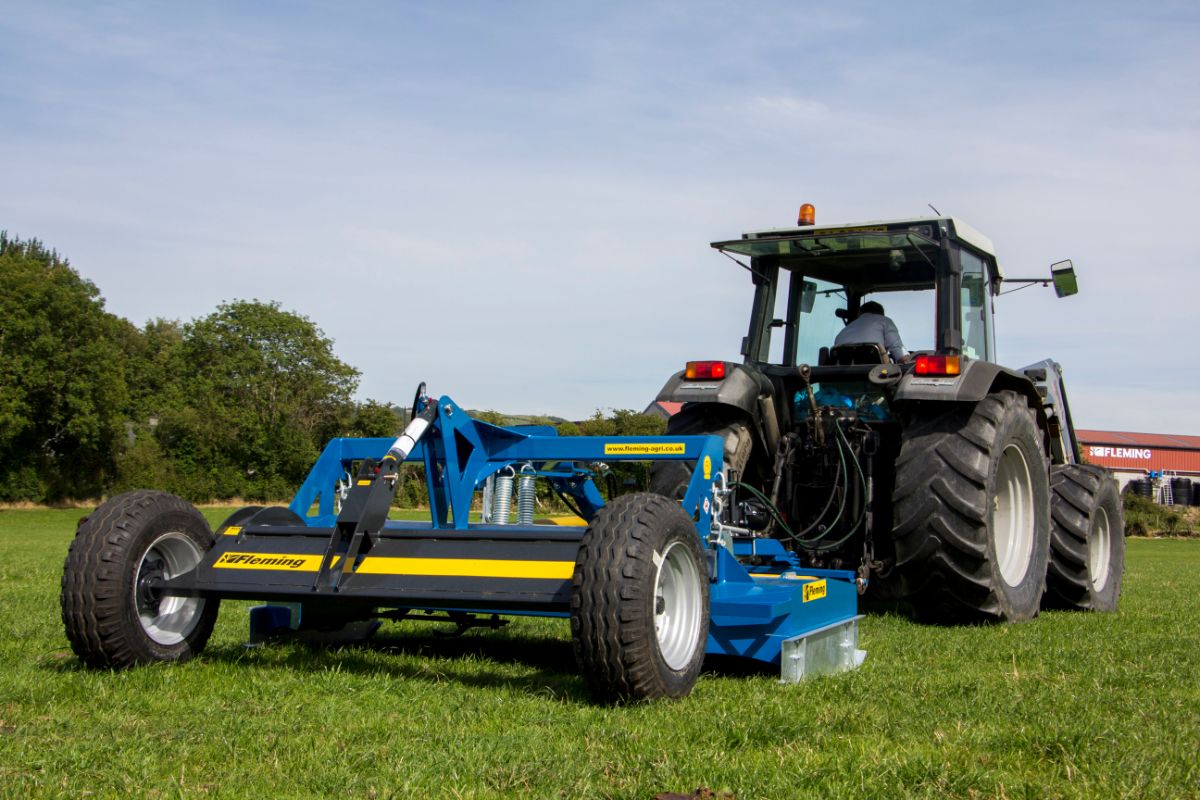

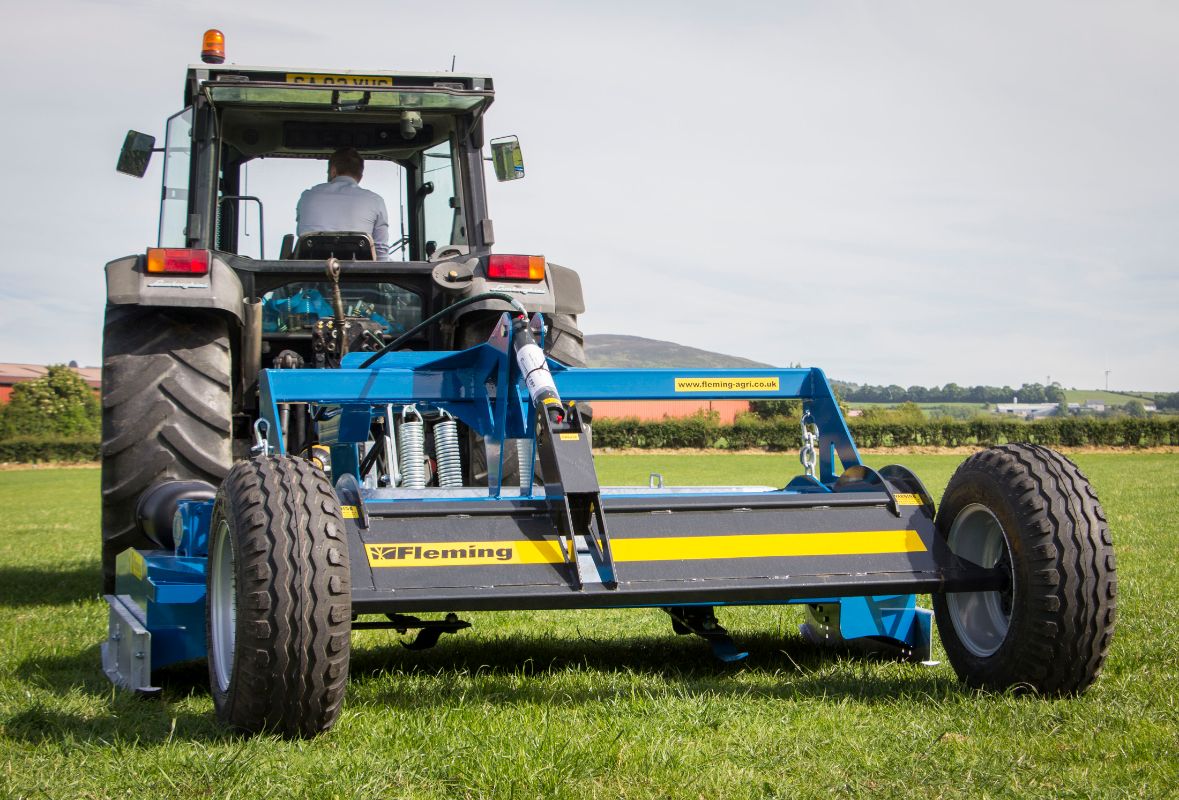

Trailed Superfloat Grass Topper

Please Call for Pricing

The Fleming Agri trailed superfloat grass topper is ideal for use on parkland, sports pitches, agricultural use and many other tasks. Additionally It is a low maintenance, high capacity machine permitting large areas to be cover quickly.

The superfloat topper is fully offset and available in 2 working widths:

2.5m (8ft)- standard

2.7m (9ft)-heavy duty

We also offer the mounted superfloat topper.

Features

  • Adjustable cutting height from 50-200mm
  • Gearbox and rotors mounted on a one-piece heavy-duty base plate with structural box support for use in rugged terrain
  • Heavy duty one-piece 3mm deck with reinforcing across the length of the body for absolute rigidity
  • Guards and skids galvanised for long life
  • Reinforced 4mm heavy duty convex skids
  • Hydraulic anti-breakaway protection fitted as standard for the ultimate safety in transport
  • Fitted with free-floating deck with spring assisted body floatation to provide multi-functional movement creating minimal stress resistance on the machine, allowing it to glide over the ground and keep the blades at an even cutting height at all times
  • Counter rotation of the rotors work in tandem with the fluted, hardened steel blades to disperse grass evenly
  • All pivot points are fitted with greases nipples for smooth operation and long life
  • Lift arm drawbar combined with wide angle PTO for better manoeuvrability and tighter turning circle
  • Oversized tyres (10.5x75x15.3) on a reinforced wheel carriage with greased heavy-duty pivot points for smooth operation and durability

Heavy Duty Model

  • Heavy duty model fitted with 75hp gearbox
  • Heavy duty model fitted with flexible knuckle drive line protected by rubber couplings
  • Heavy duty model fitted with additional straight blades for mulching effect when cutting

Specifications

TOP8T
Transport width2530mmWorking width2500mm
No of rotors2No of blades4
No of gearboxes3Gearbox rating55hp
Weight650kgHP required80
TOP9T
Transport width2800mmWorking width2800mm
No of rotors2No of blades8
No of gearboxes3Gearbox rating75hp
Weight850kgHP required80
