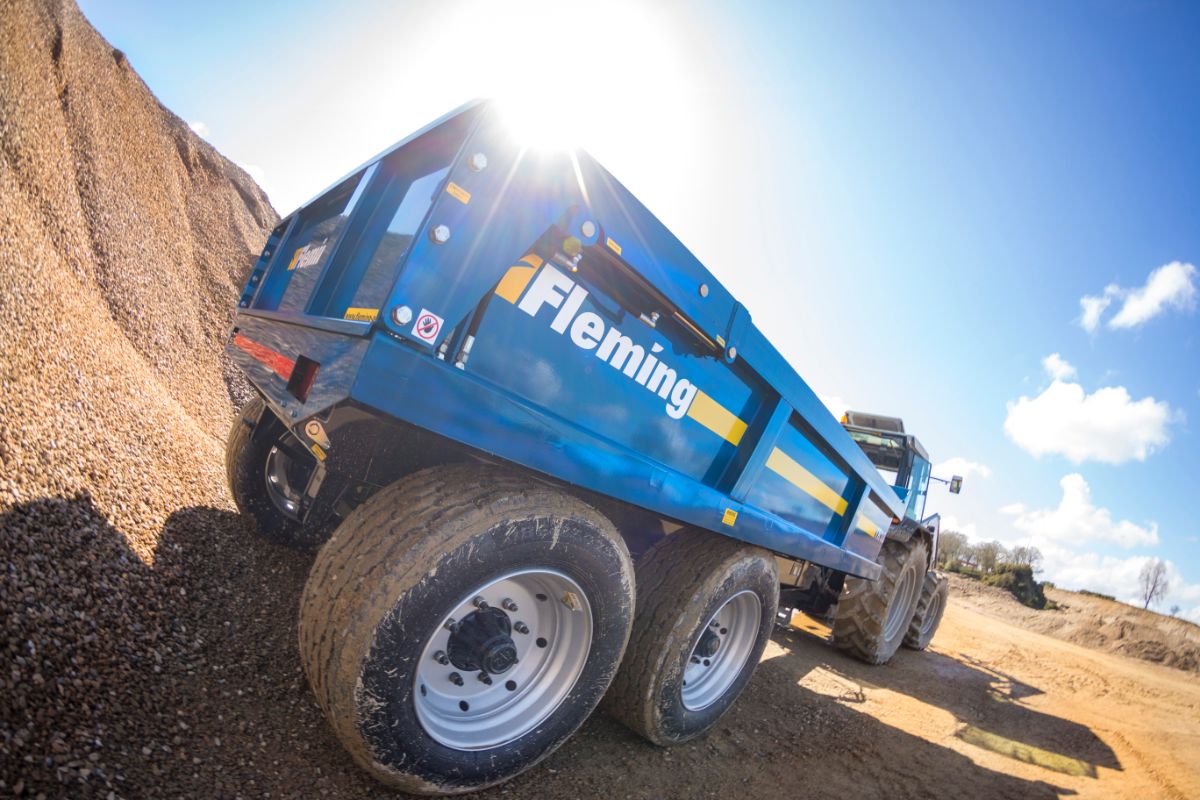

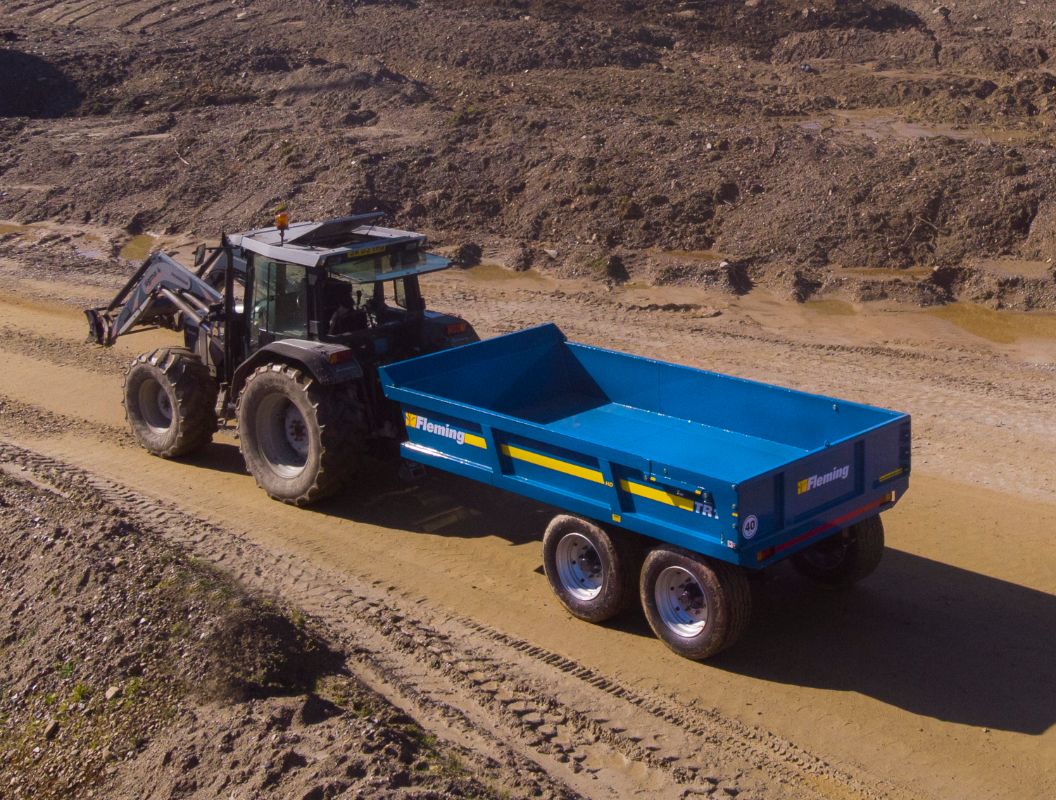

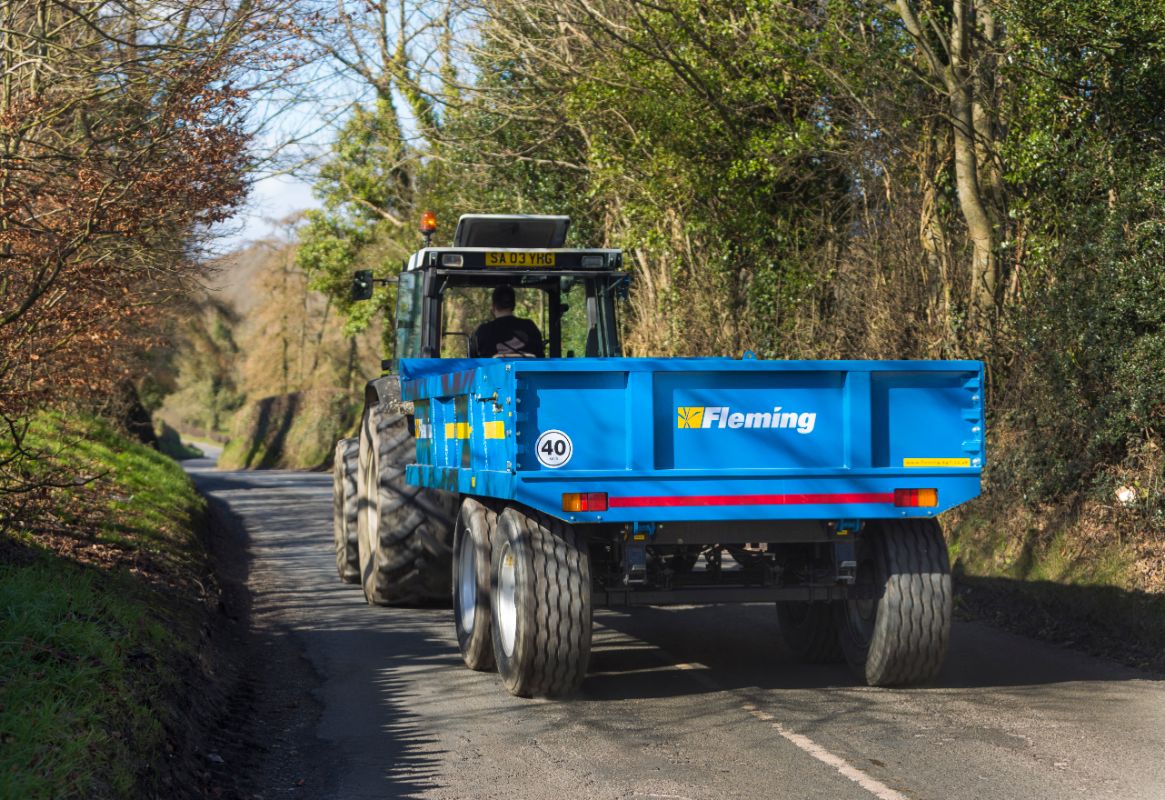

Fleming 10 Ton Dump Trailer

Please Call for Pricing

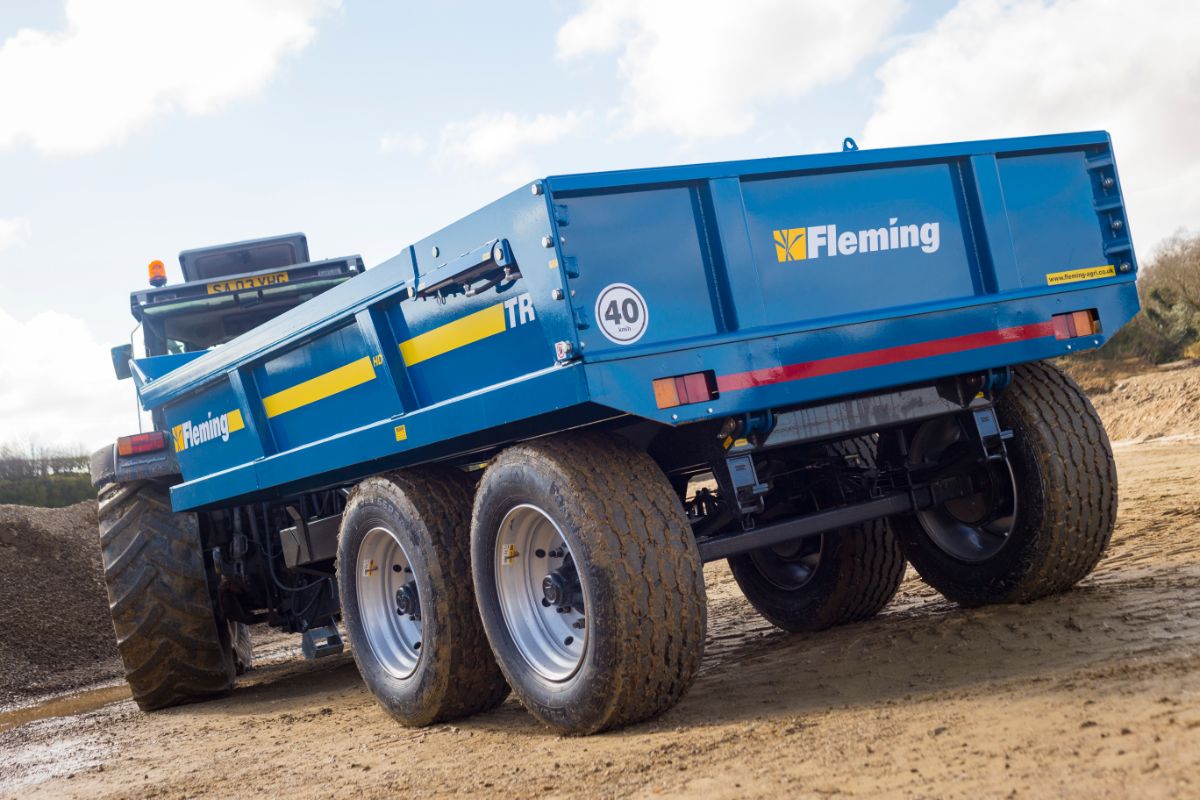

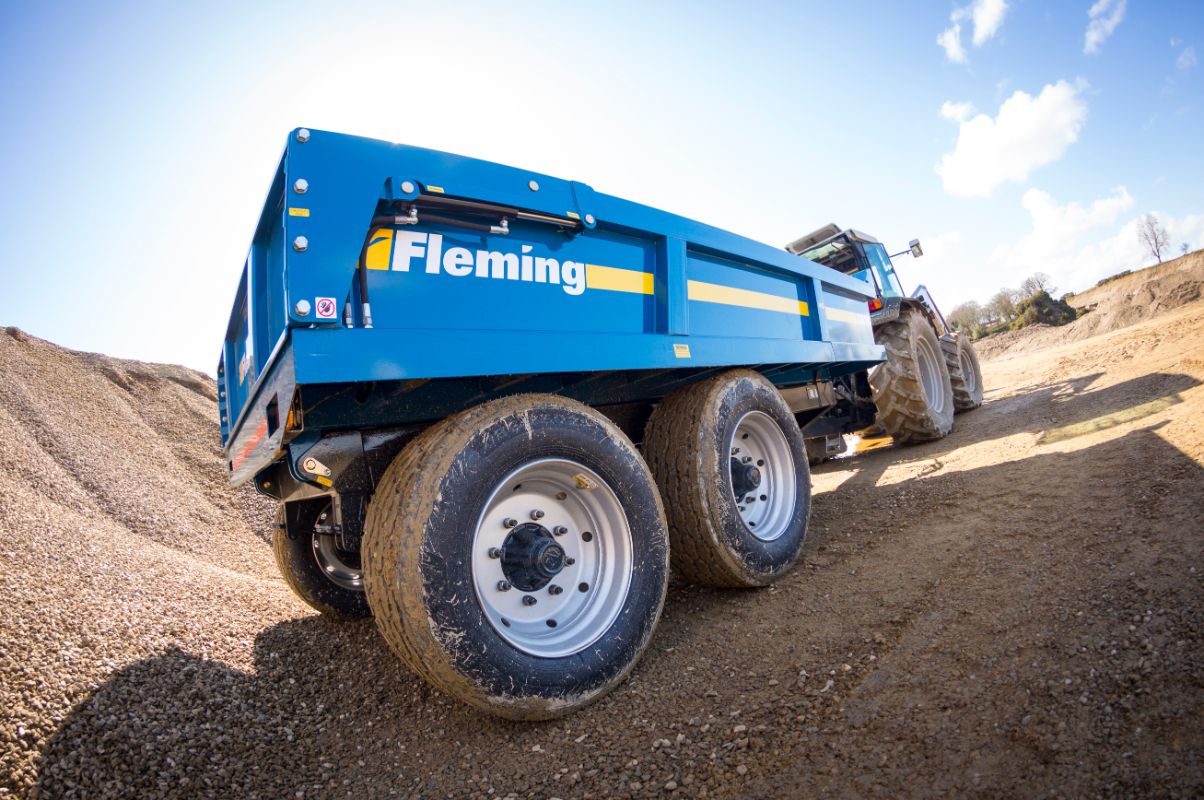

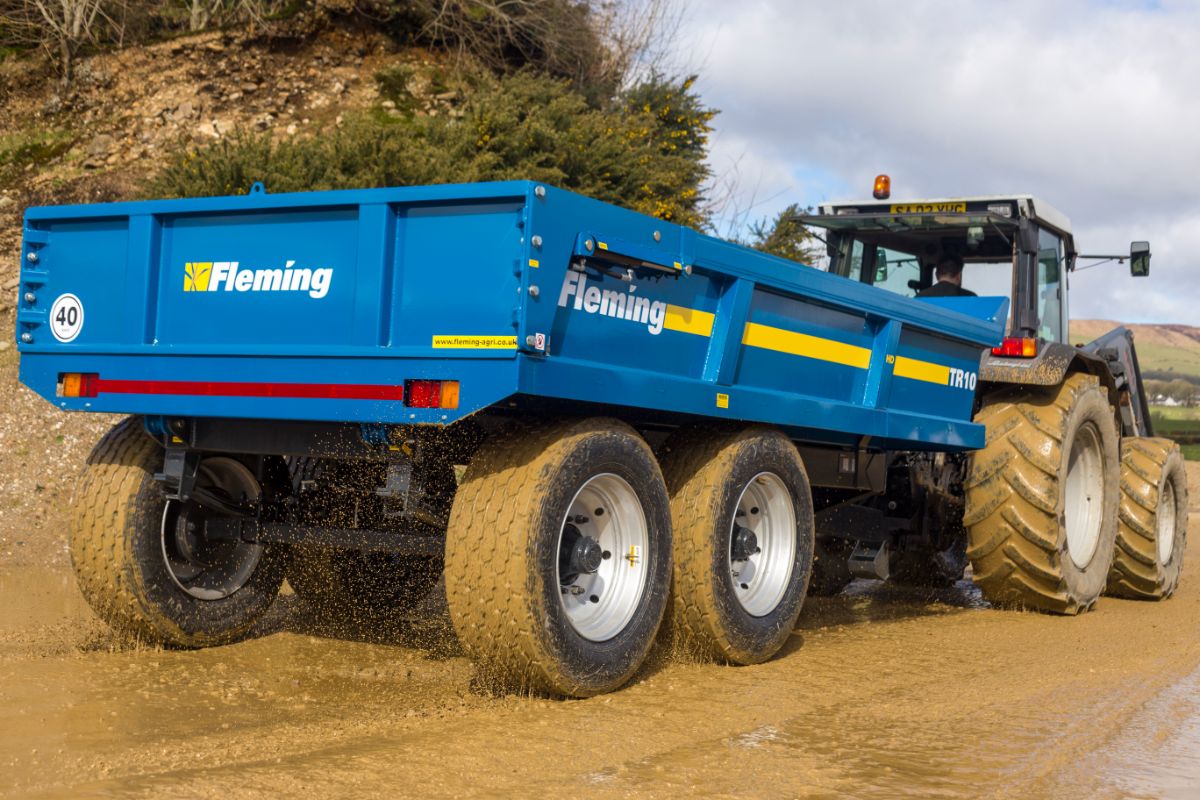

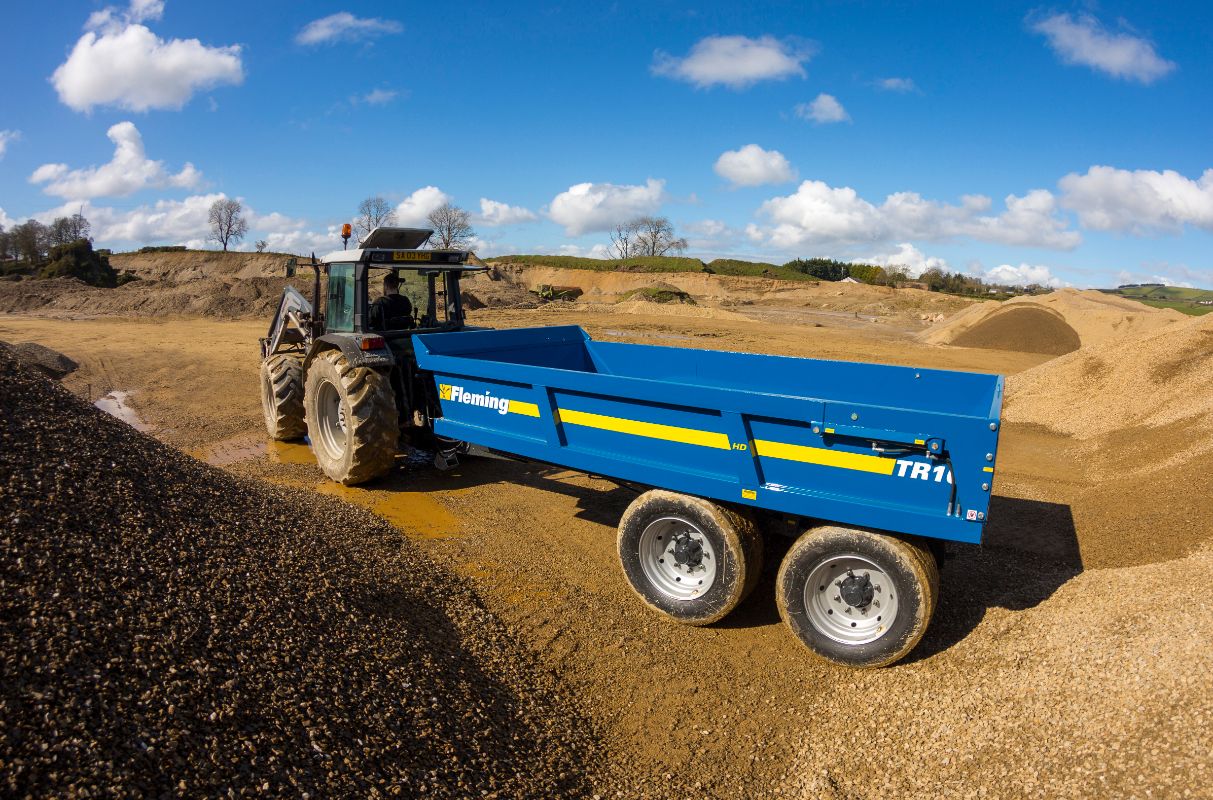

The Fleming Agri 10 ton dump trailer meets the requirements of the agricultural, landscape and construction sectors. High tensile plate and steel channel components make up the robust, heavy-duty body. The hollow section chassis helps to reduce weight whilst retaining all of the integral structural strength.

Features

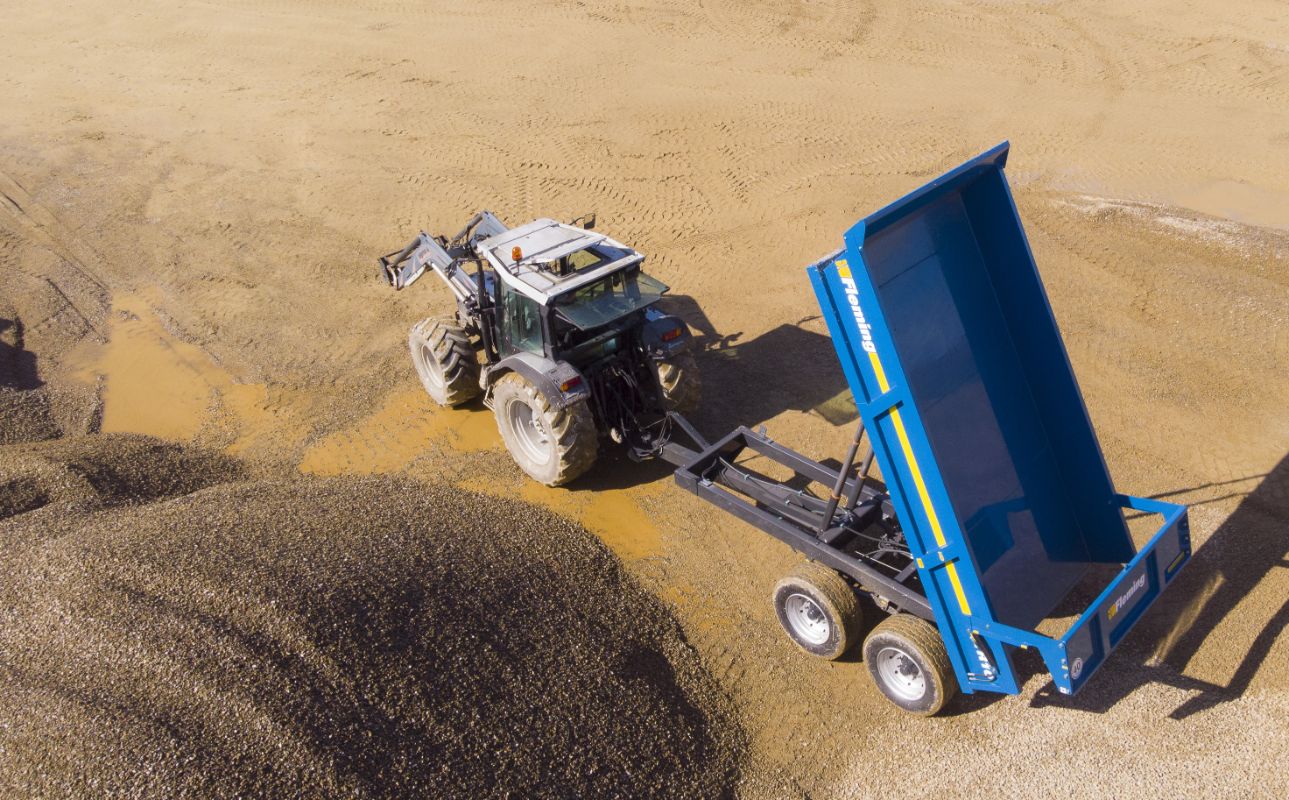

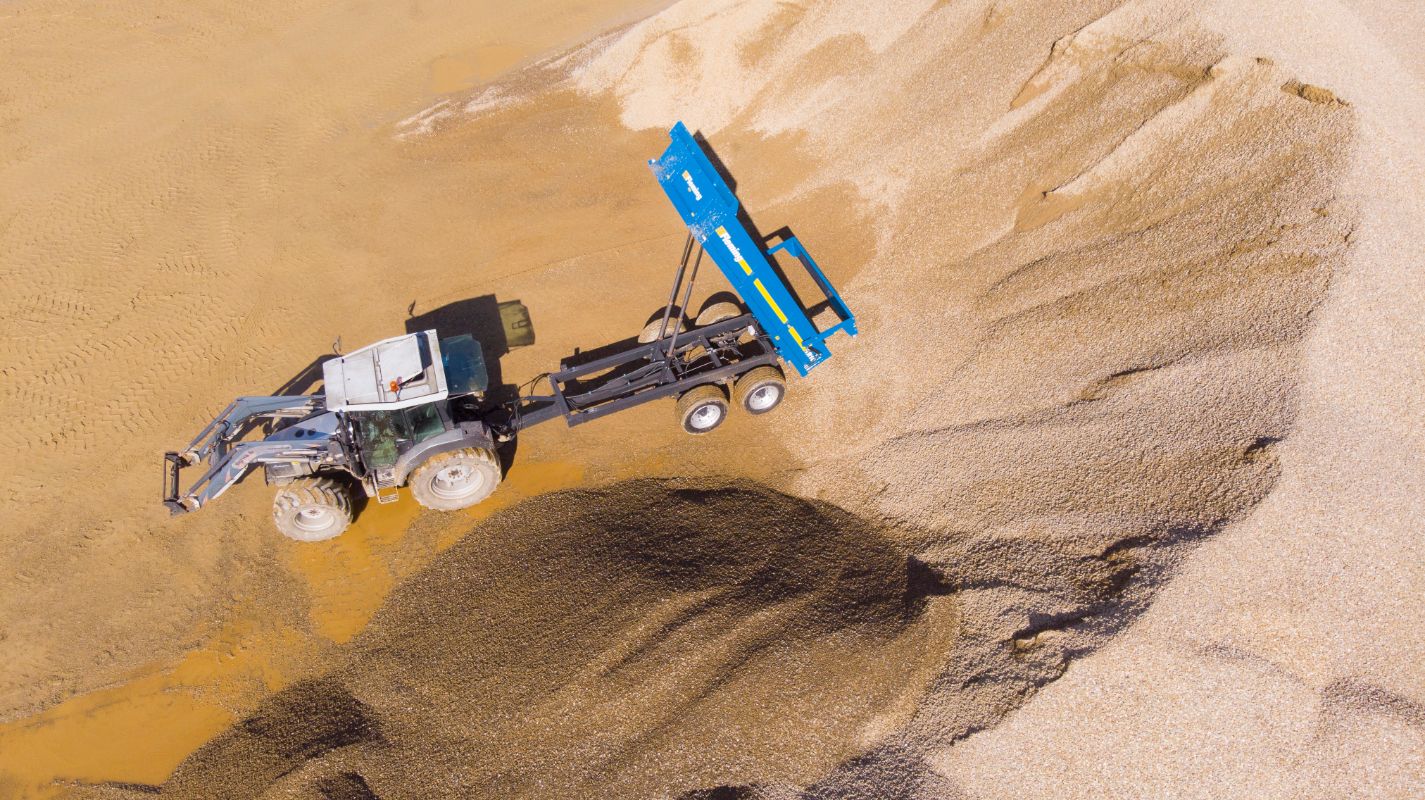

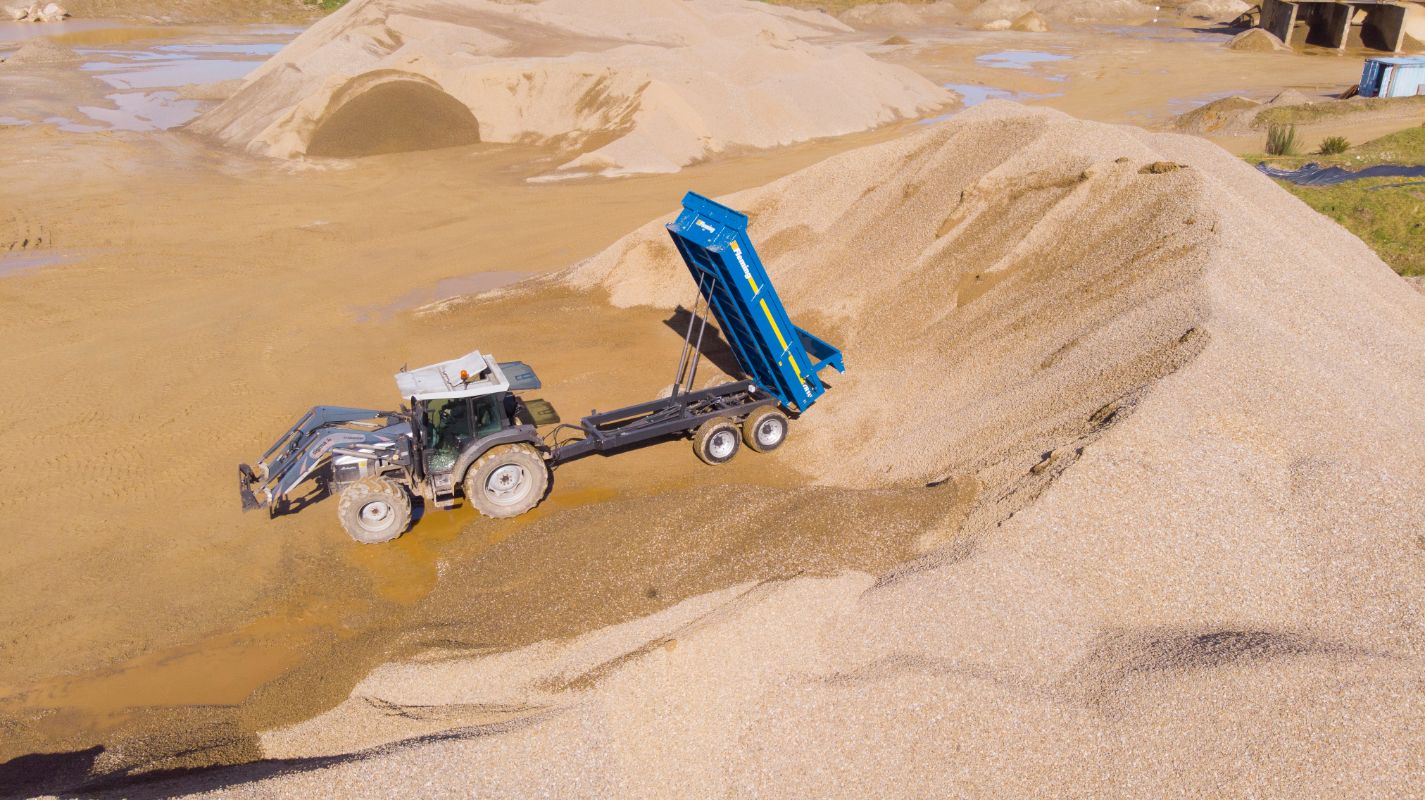

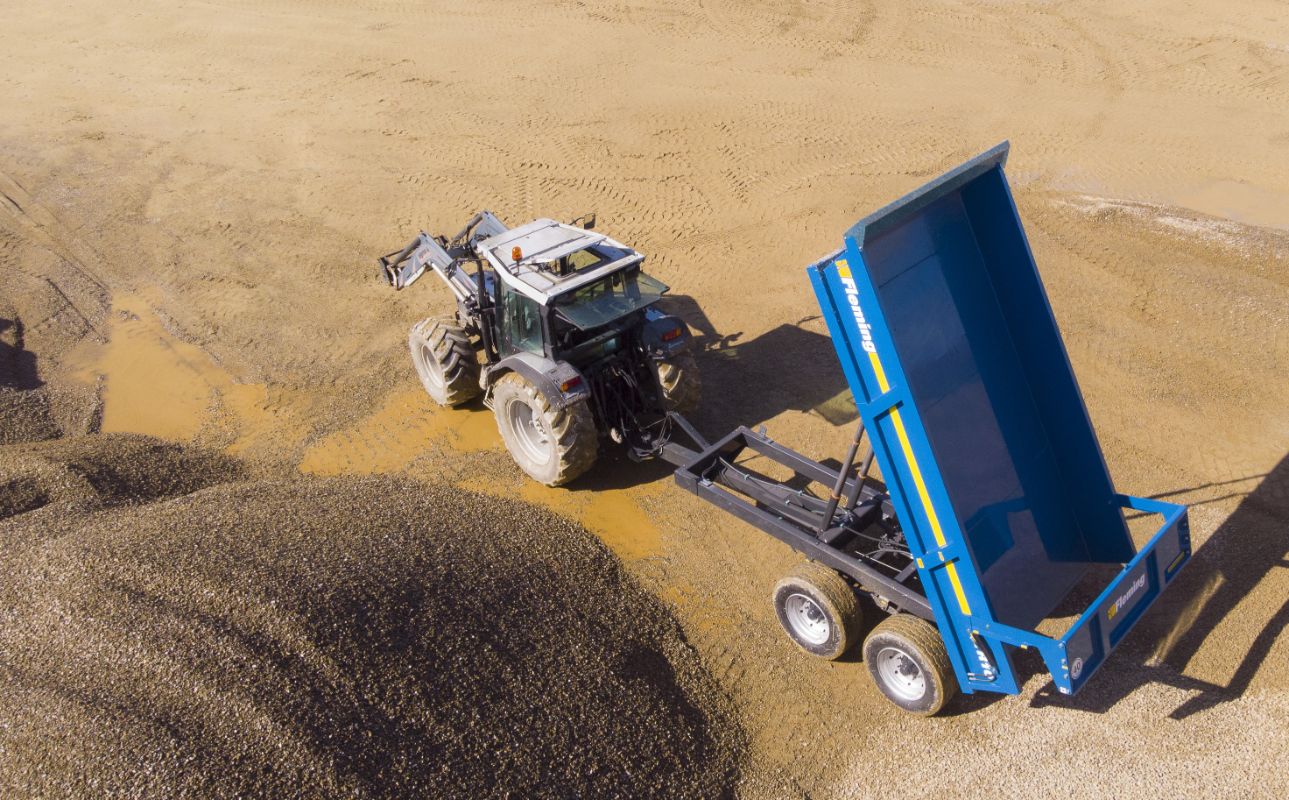

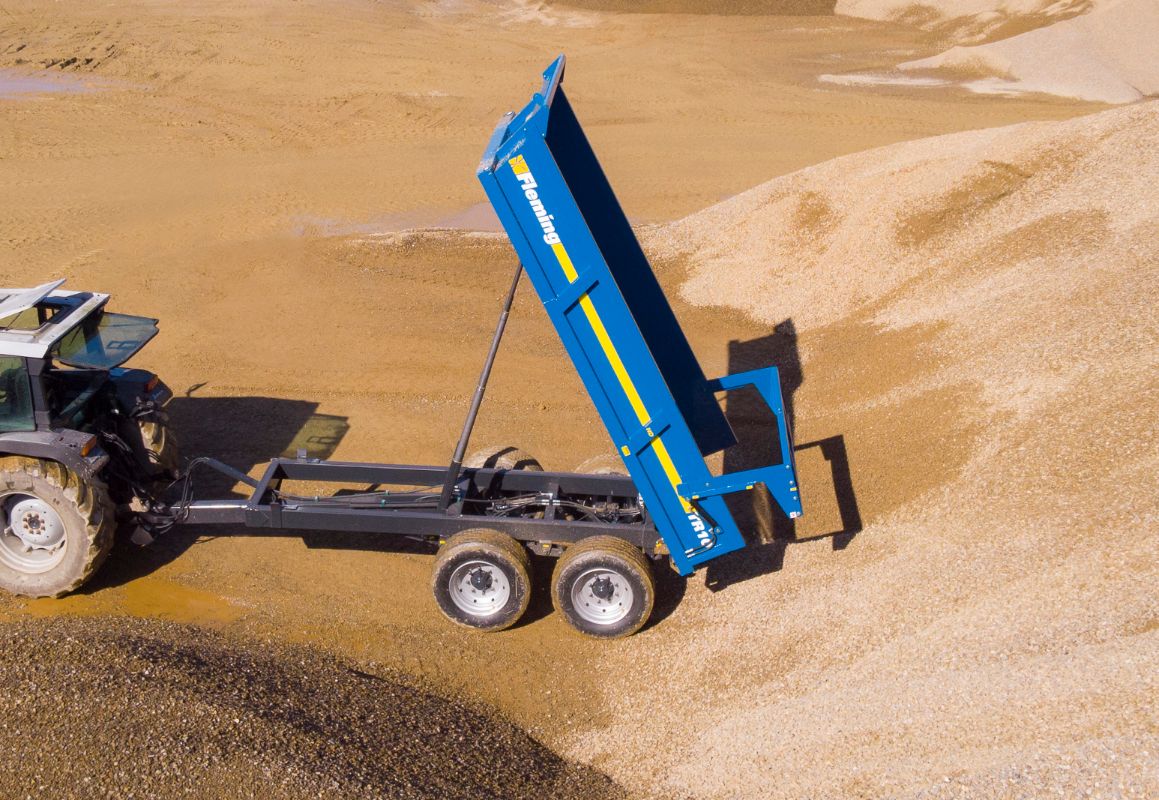

  • 60° tipping angle from twin, heavy-duty tipping rams ensuring a fast and clean unloading
  • All hydraulic hoses are concealed within the chassis
  • 8 stud, heavy-duty axle
  • EN8 towing eye
  • 385/55/22.5 tyres

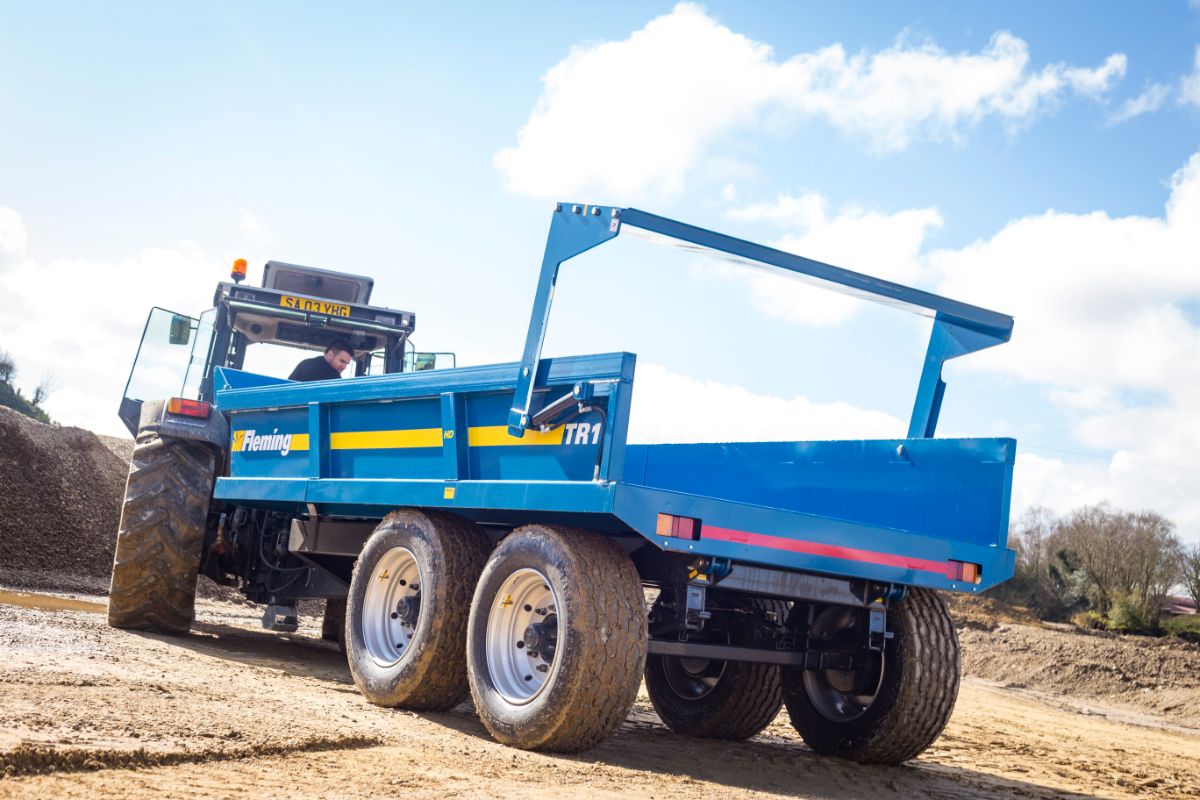

  • Up and over hydraulic back door made from 6mm high tensile steel with drop down facility
  • Multi leaf spring bogie suspension
  • Head board
  • Brakes as standard
  • Lights positioned inside heavy duty structural channel

Option

  • Aluminium ramps

Specifications

TR10HD
Body length4420mmWidth2380mm
Floor thickness8mmSide height540mm
Loading height1115mmUnladen weight3660kg
Capacity5.3m3Wheel size standard385 x 55 x 22.5
Wheel size optional4.2 x 0.54 x 2.28
