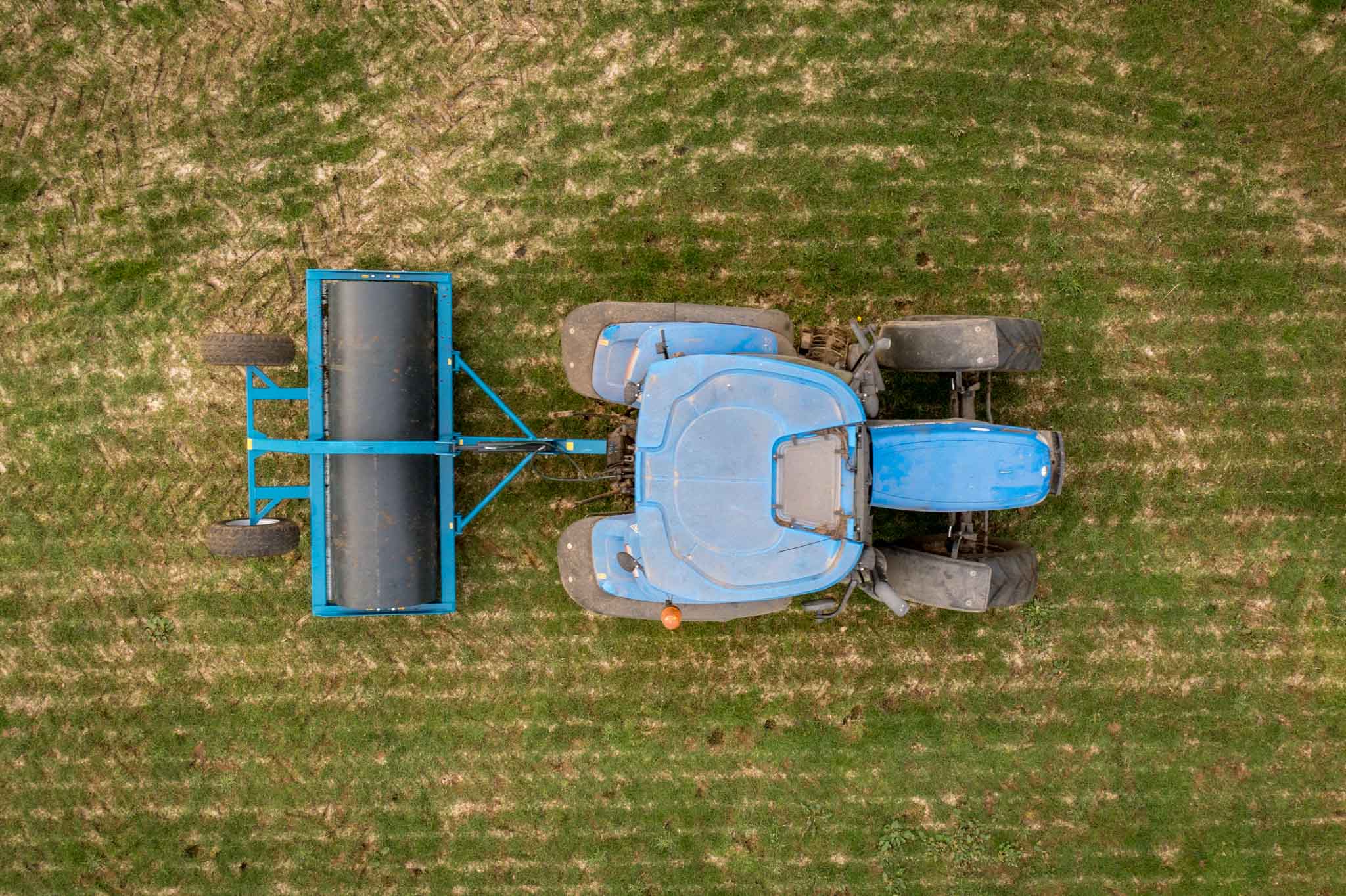

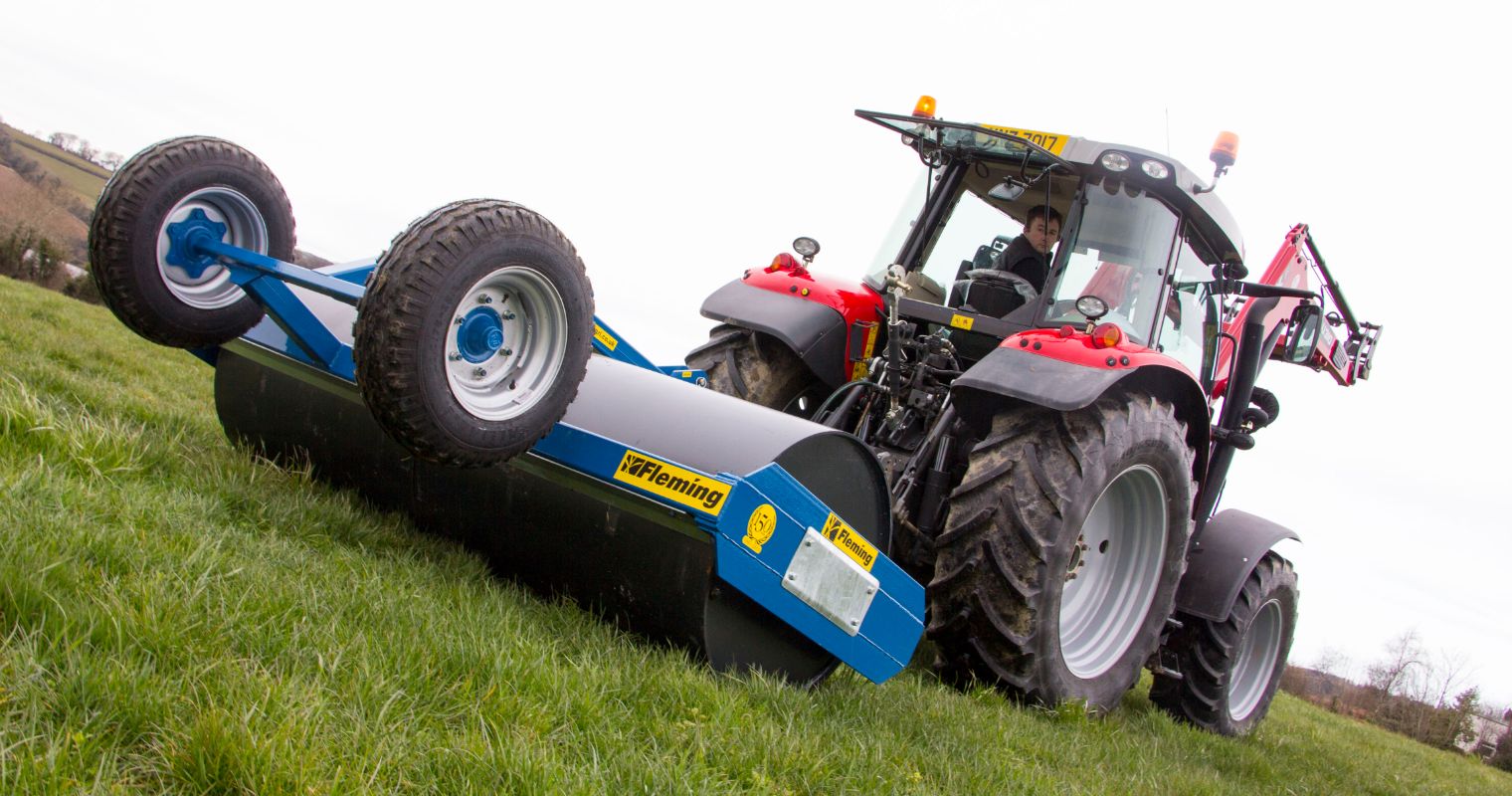

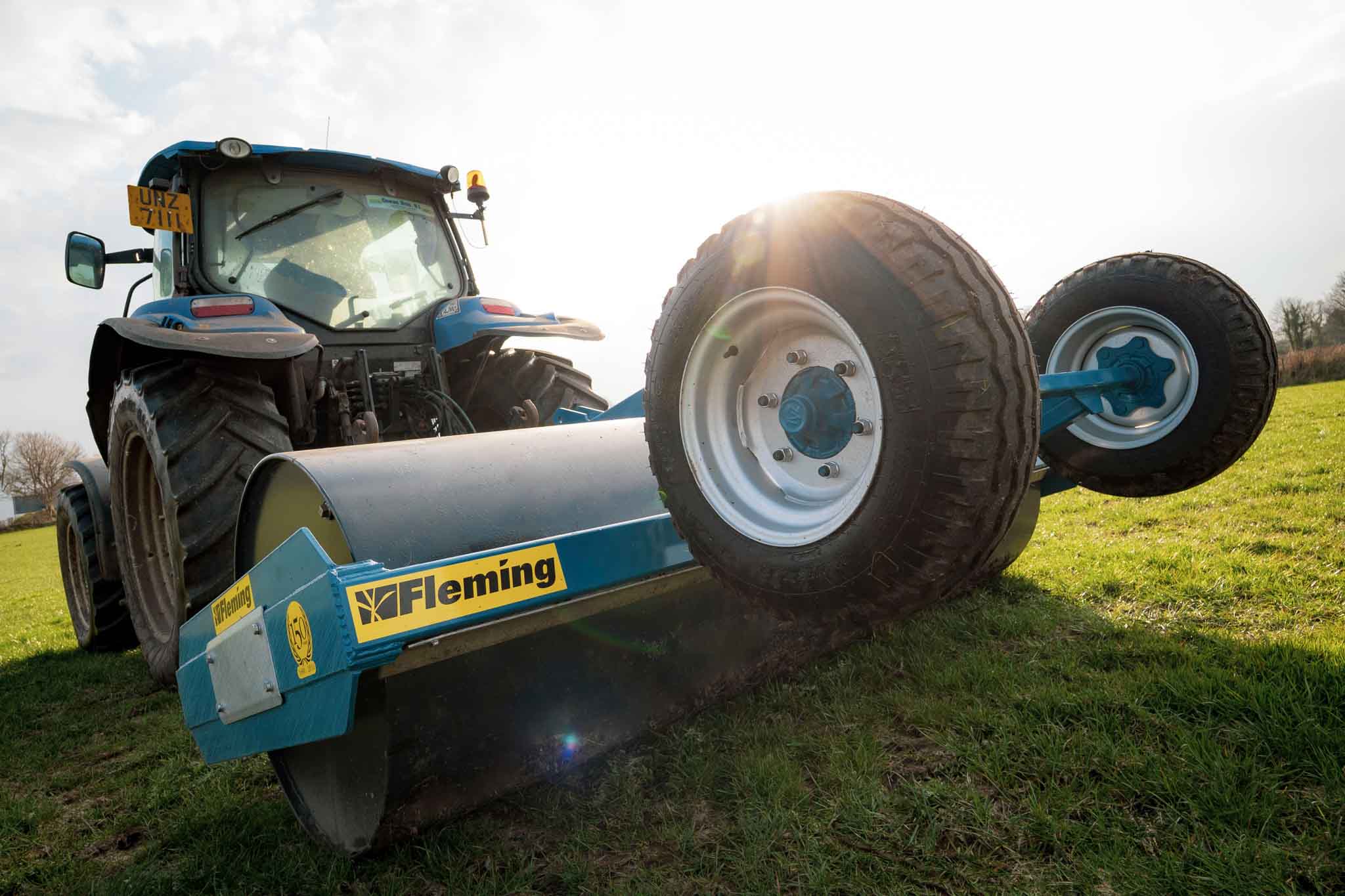

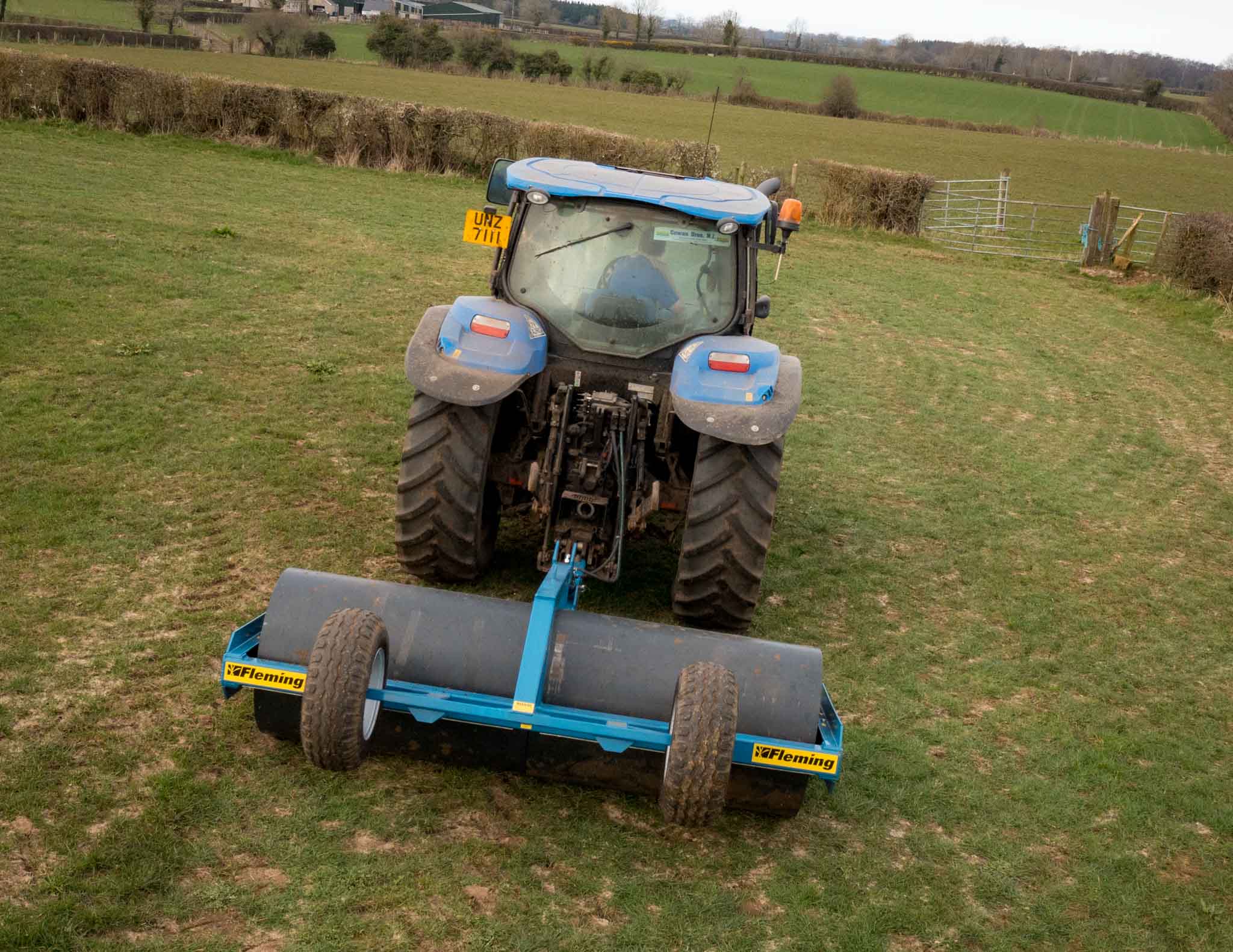

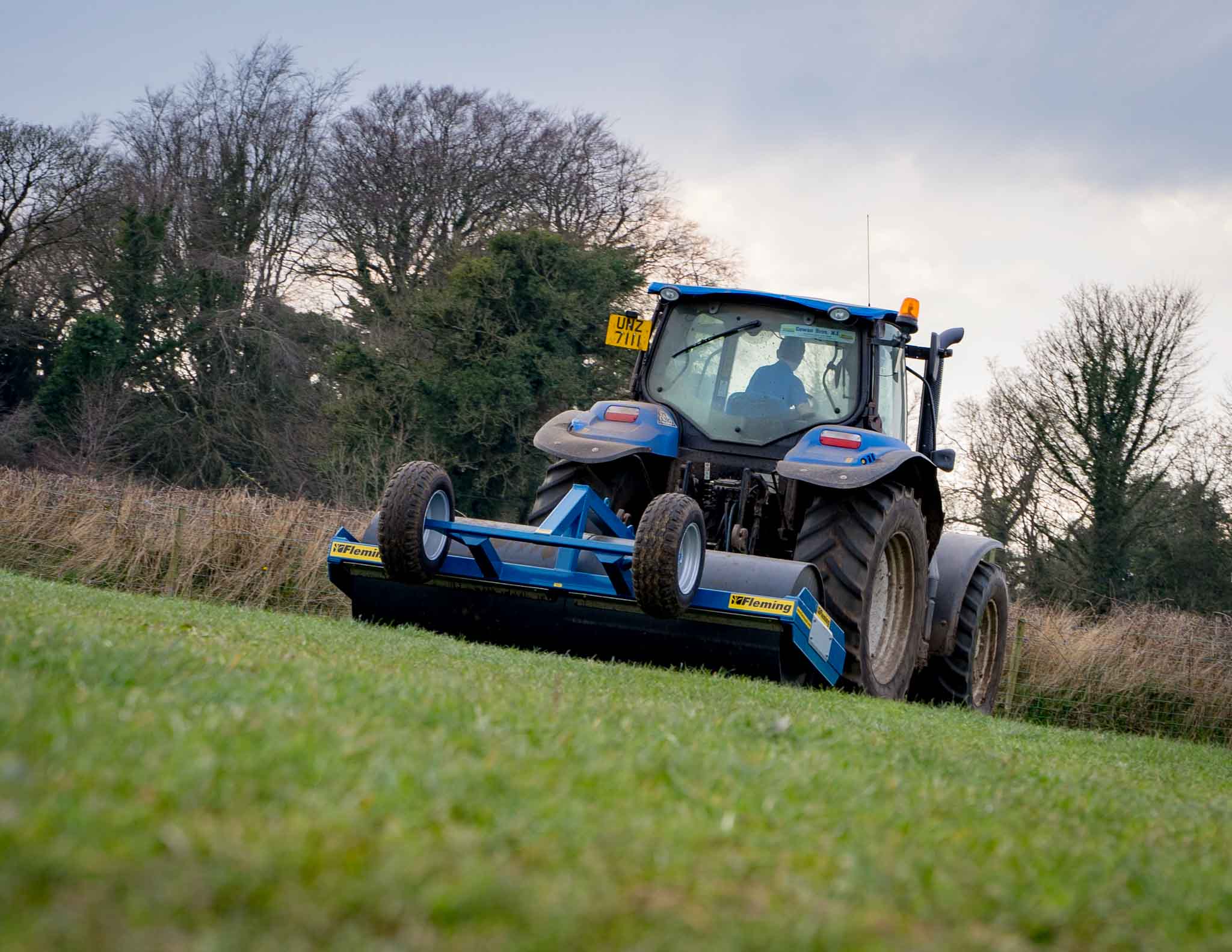

Fleming Hydraulic Lifting Roller

Please Call for Pricing

Fleming Agri have a long history manufacturing ballast land rollers for a wide range of uses. The hydraulic lifting roller allows for easy change-over from working to transport mode. Additionally, you can transport the hydraulic lifting roller fully laden.

Available in 8ft and 9ft working widths.

Features

  • Heavy duty 120mm structural box frame
  • Drums are air tested after welding
  • Scraper blade fitted as standard
  • Seconds to change over from transport position to working position
  • 6 stud axle with 10/75/15.3 tyres
  • Hardwood bearings with 75mm steel shaft
  • Hinged drawbar allows the roller to be elevated while in transport position giving extra ground clearance which prevents the roller from damage in transport
  • Performance of up to 12-14 acres per hour

Specifications

8WK12 Model
Rolling Width2420mmOverall Width2620mm
Drum Diameter885mmDrum Thickness12mm
Centre Shaft Diameter75mmUnladen Weight970kg
Laden Weight2490kg



9WK12 Model
Rolling Width2740mmOverall Width2950mm
Drum Diameter885mmDrum Thickness12mm
Centre Shaft Diameter75mmUnladen Weight1075kg
Laden Weight2780kg



9WK16 Model
Rolling Width2740mmOverall Width2950mm
Drum Diameter890mmDrum Thickness16mm
Centre Shaft Diameter75mmUnladen Weight1180kg
Laden Weight2885kg
