Fleming 12 Ton Monocoque Tipping Trailer

Please Call for Pricing

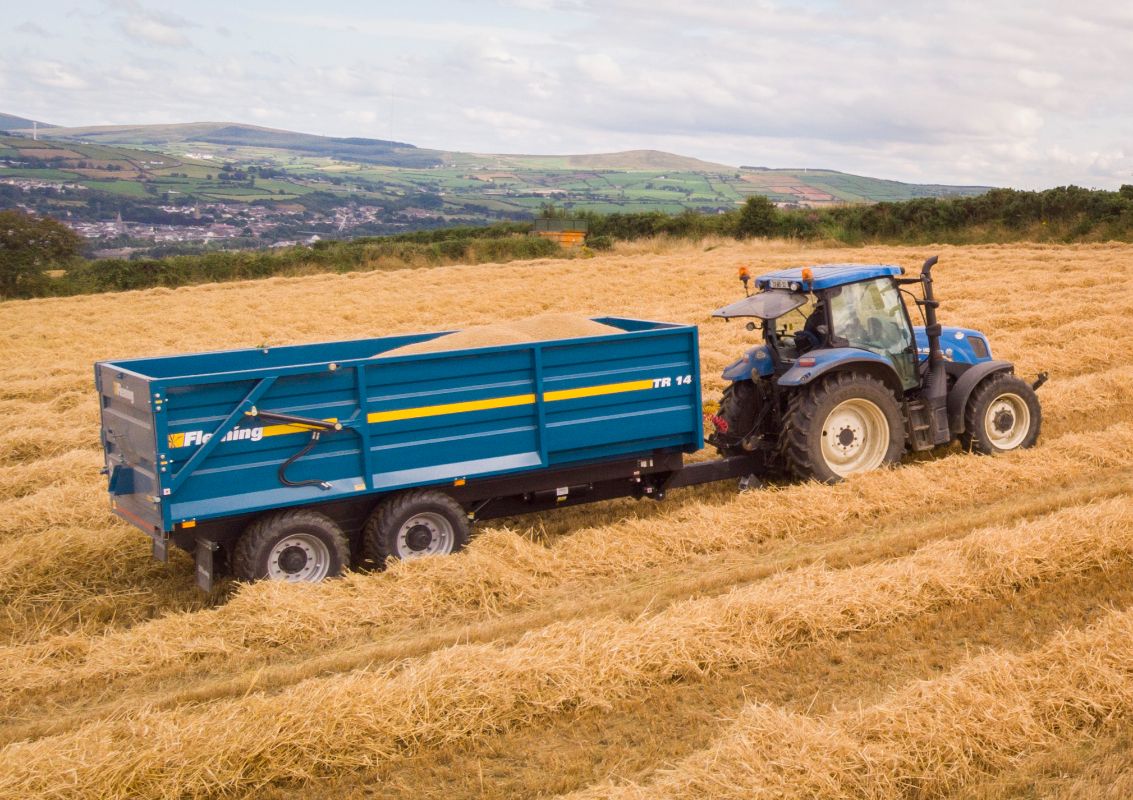

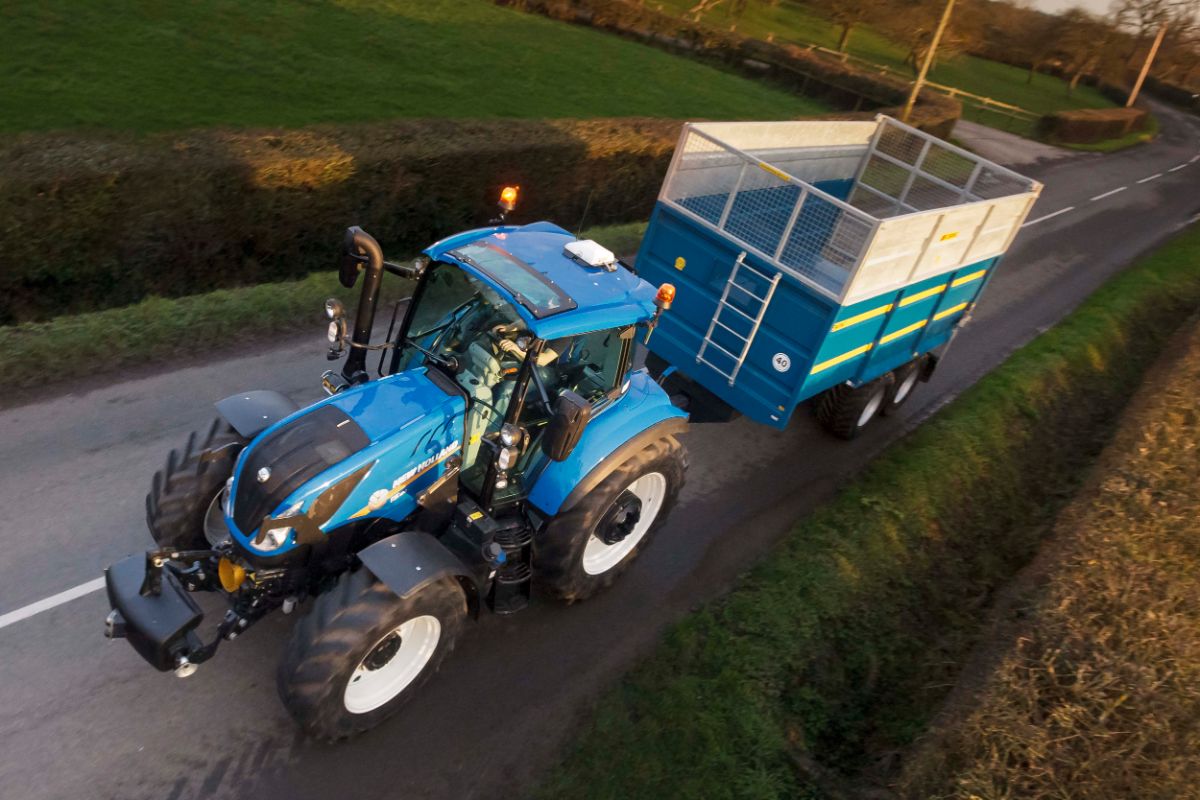

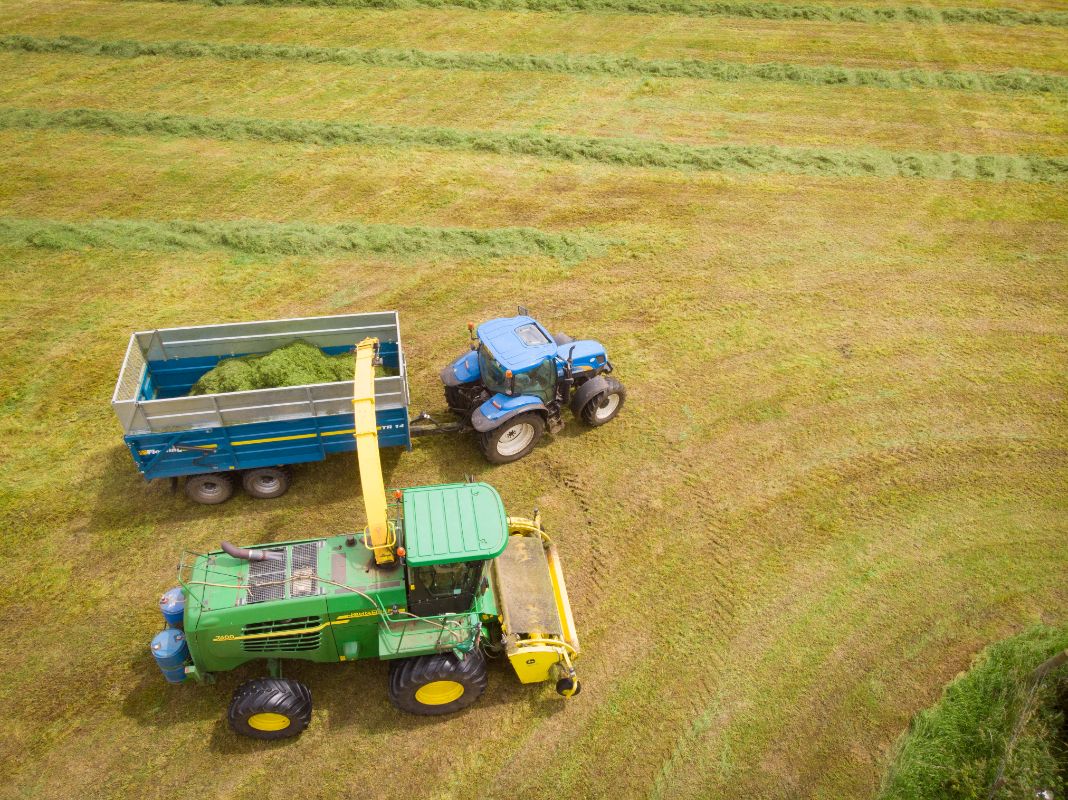

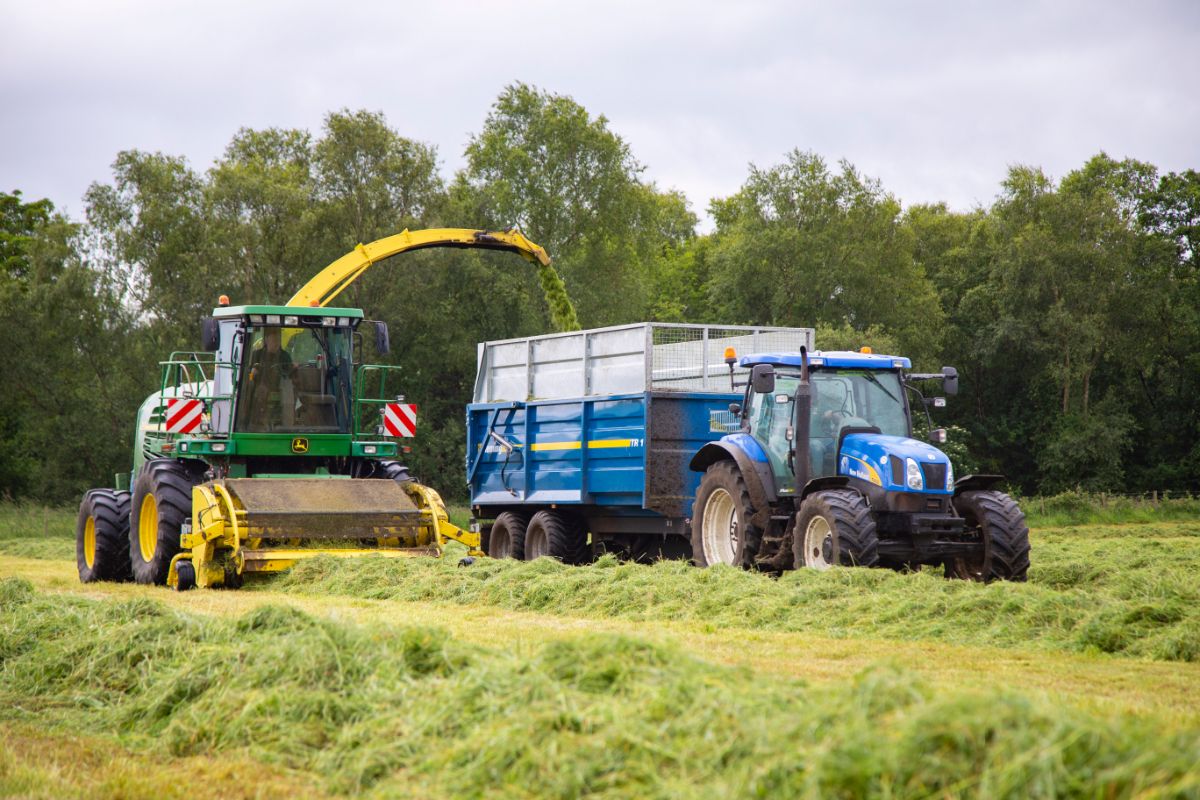

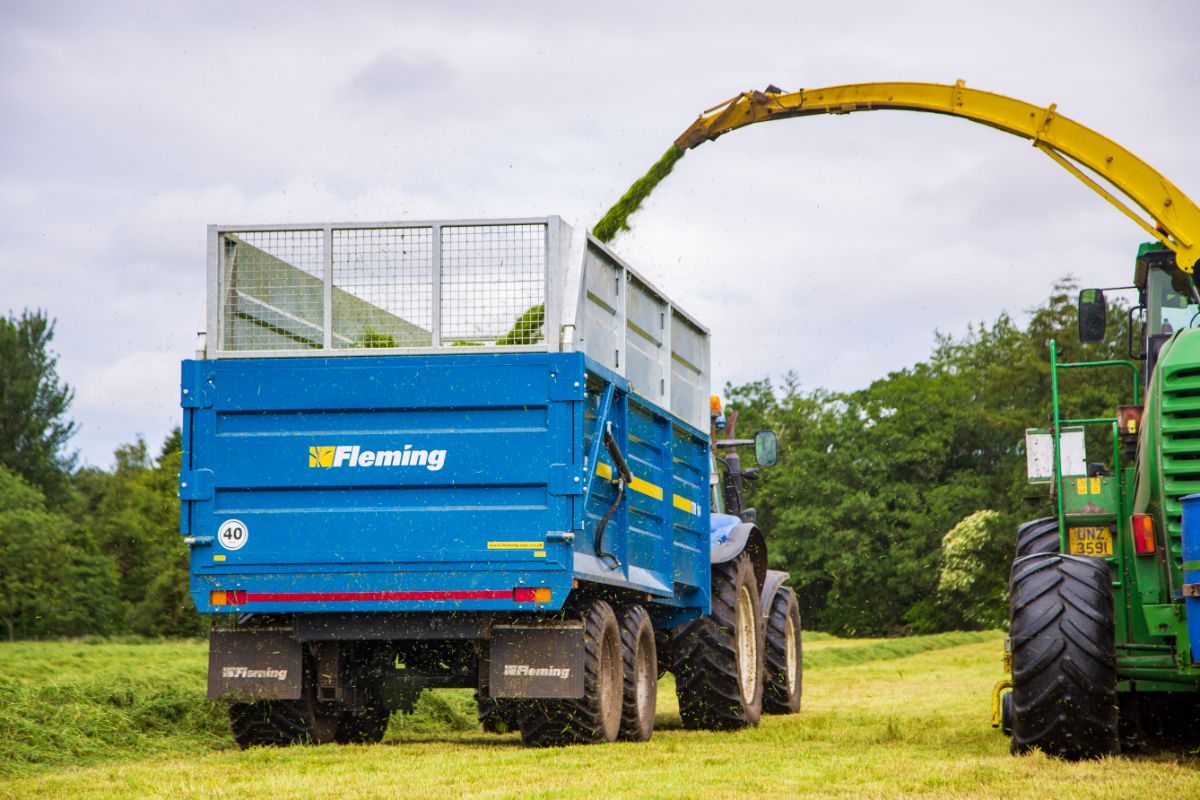

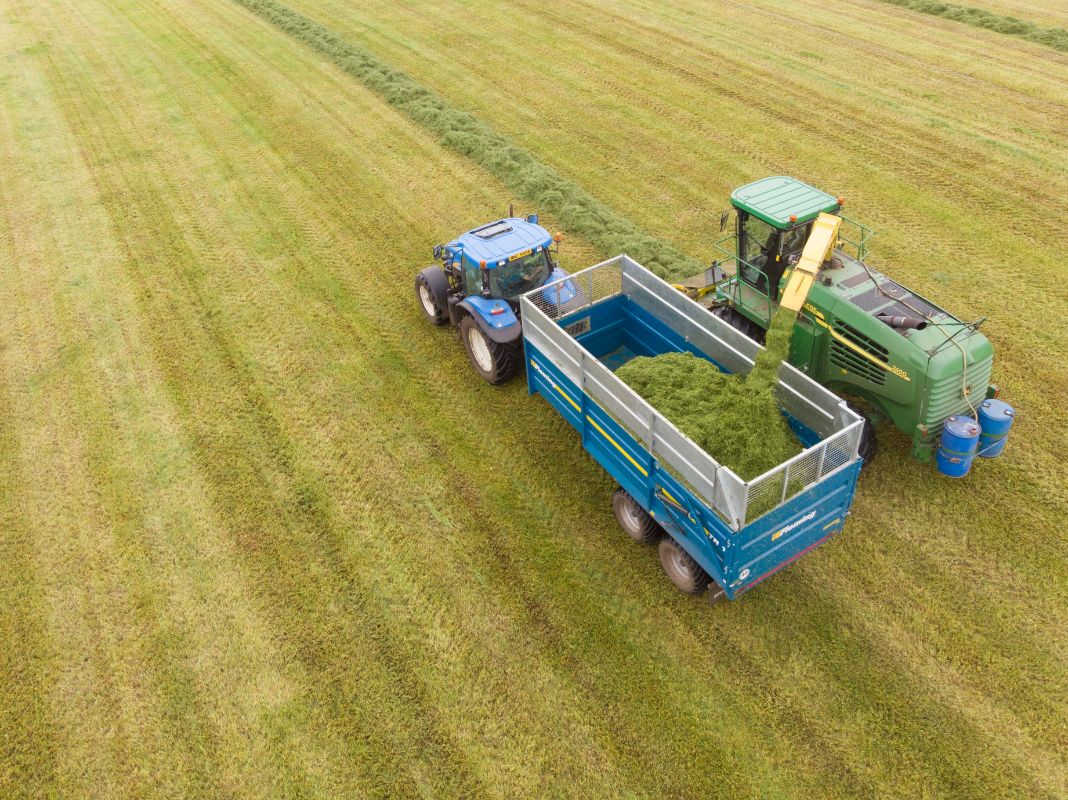

The Fleming Agri heavy duty 12 ton tipping trailer with solid construction monocoque body gives the trailer strength to satisfy the requirements of modern trailer operations. This 12,000kg agricultural trailer is ideal for grain, silage and maize/whole crop.  High tensile steel plate and hollow section form the chassis and body parts to help reduce weight. As a result this increases the payload without compromising structural strength.


  • Unique sprung drawbar provides excellent ride characteristics working in combination with the multi leaf spring suspension to reduce stress on the towing vehicle and operator
  • Tapered body for clean unloading
  • Twin heavy-duty tipping rams ensure a fast unloading time
  • Hydraulic hoses safely concealed within the chassis
  • 8 stud heavy duty axle with 550/45/22.5 tyres as standard
  • Perspex viewing window
  • 40mm EN8 towing eye
  • Slim-line, reinforced draw bar with galvanised parking shoe
  • Hydraulic hose carrier
  • Access ladder
  • Heavy duty 5mm floor

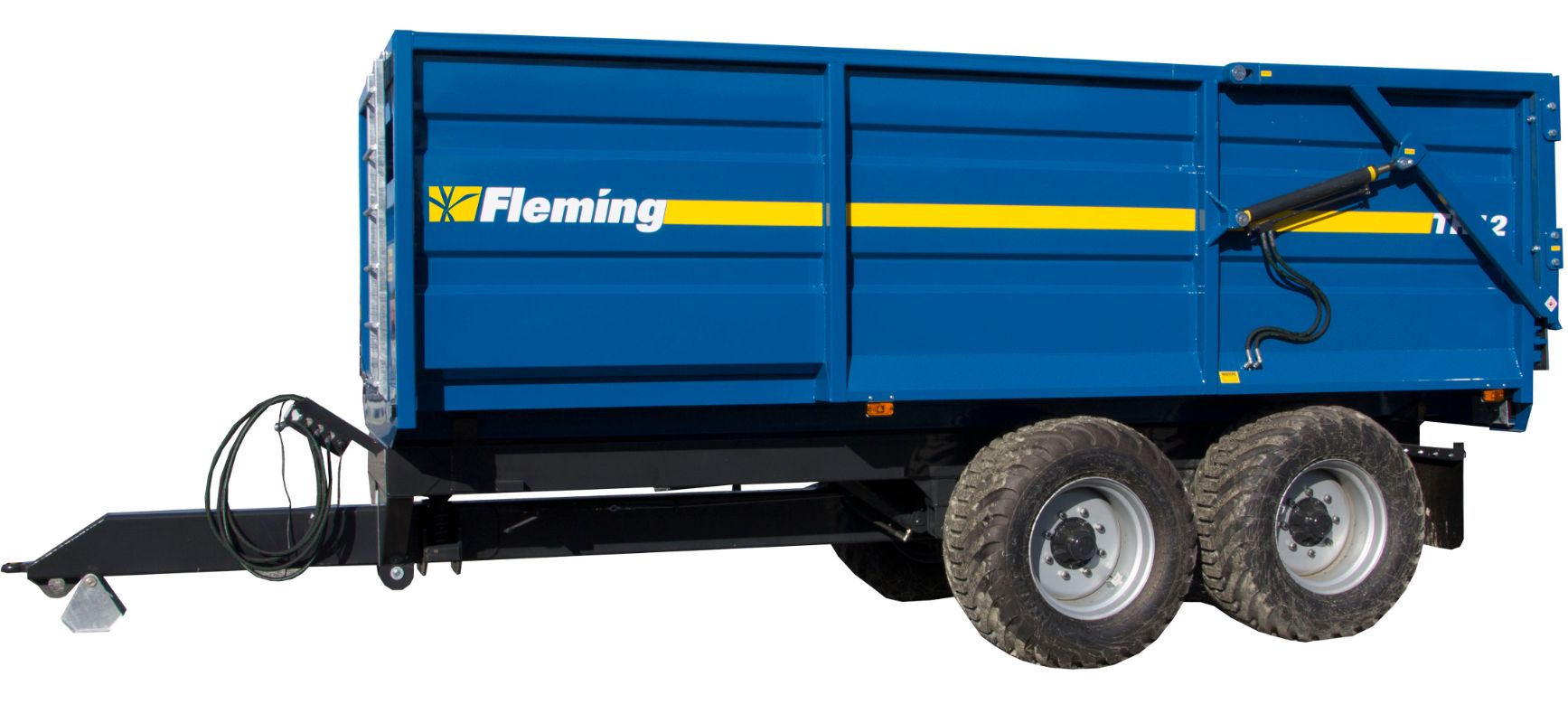

  • Hydraulic back door complete with locking safety valve to avoid accidental spillage

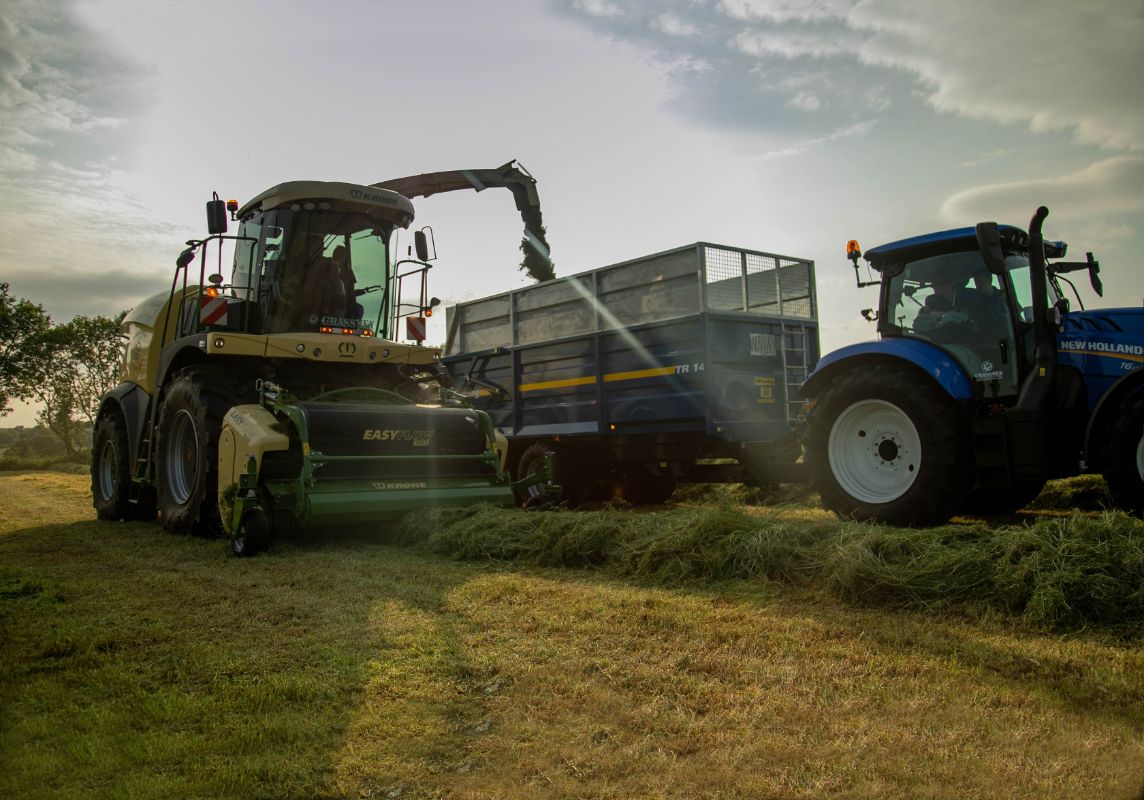

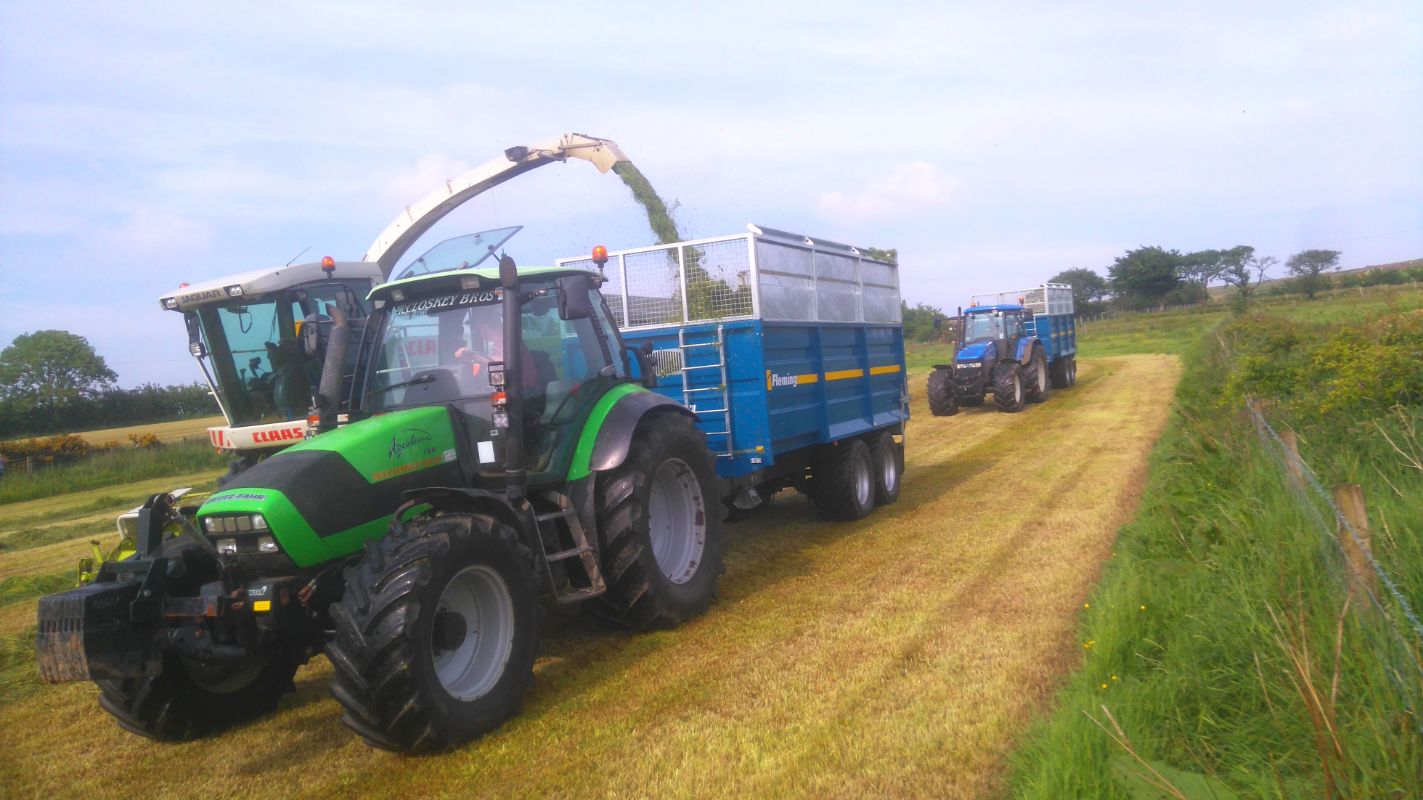

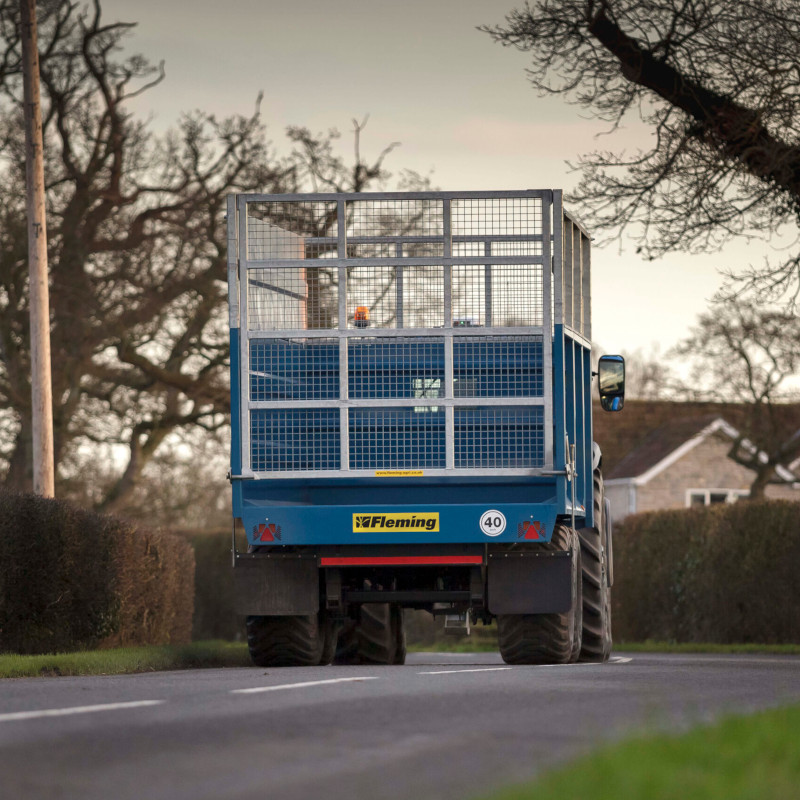

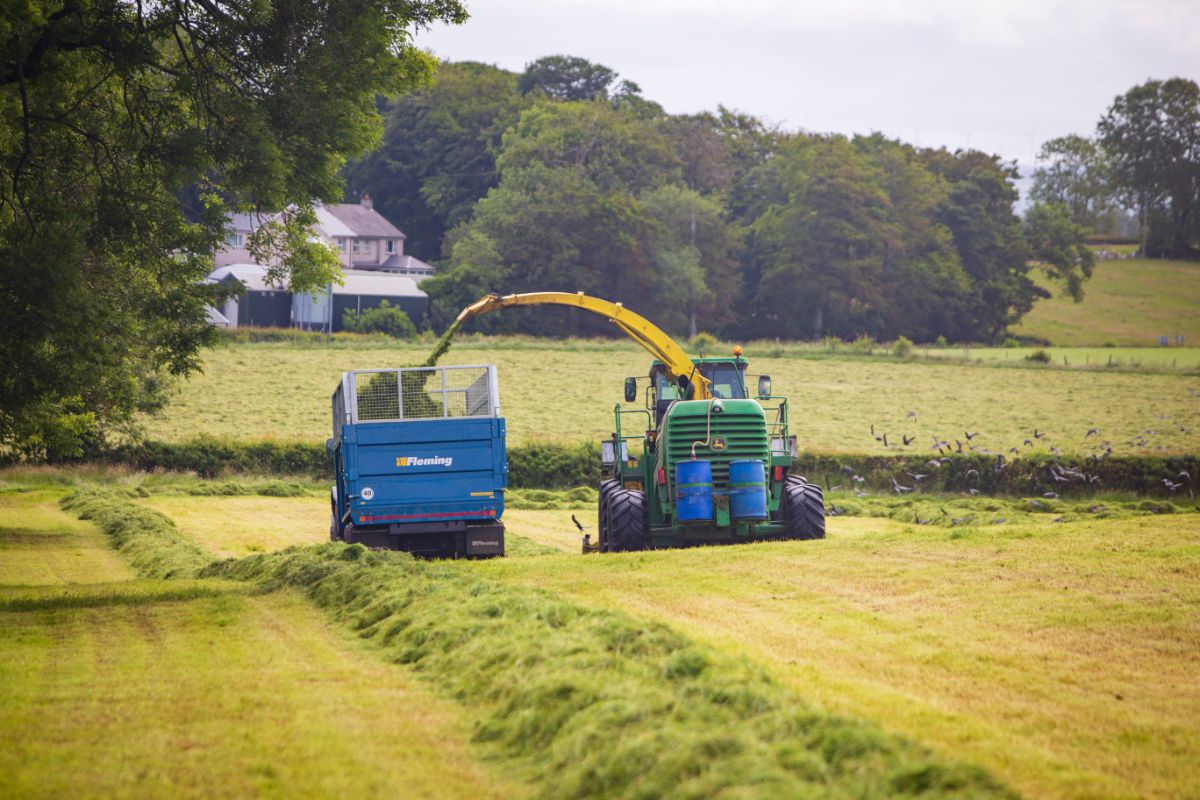

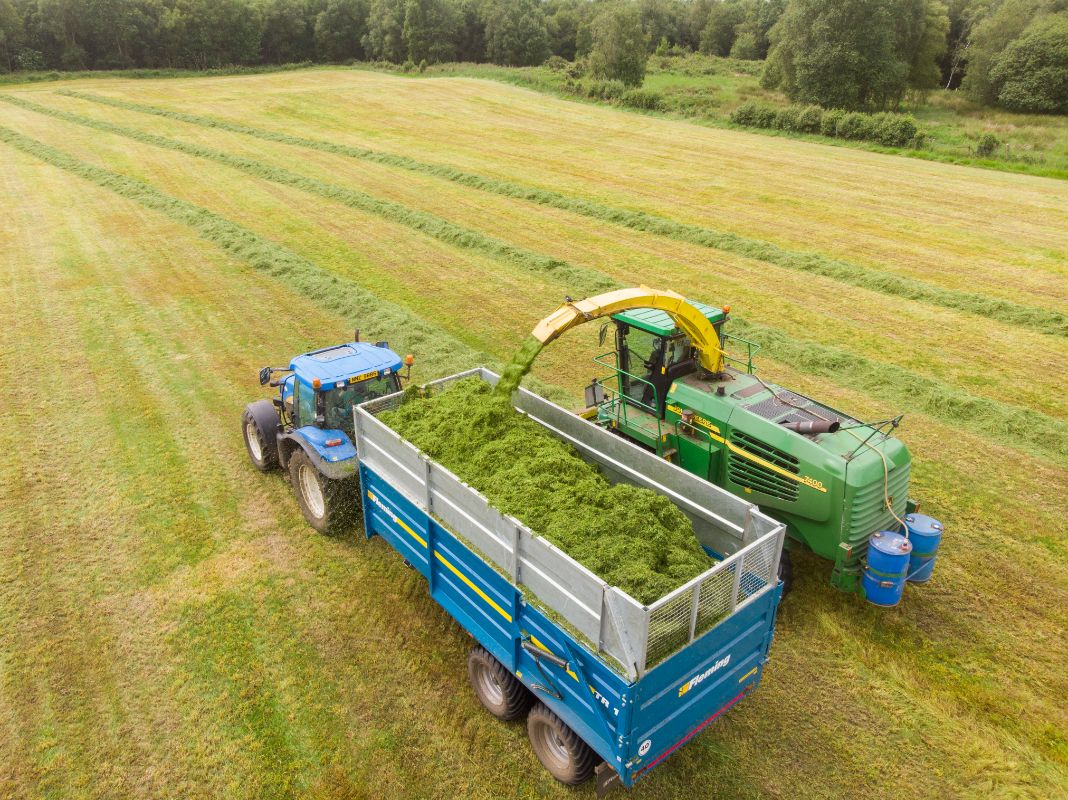

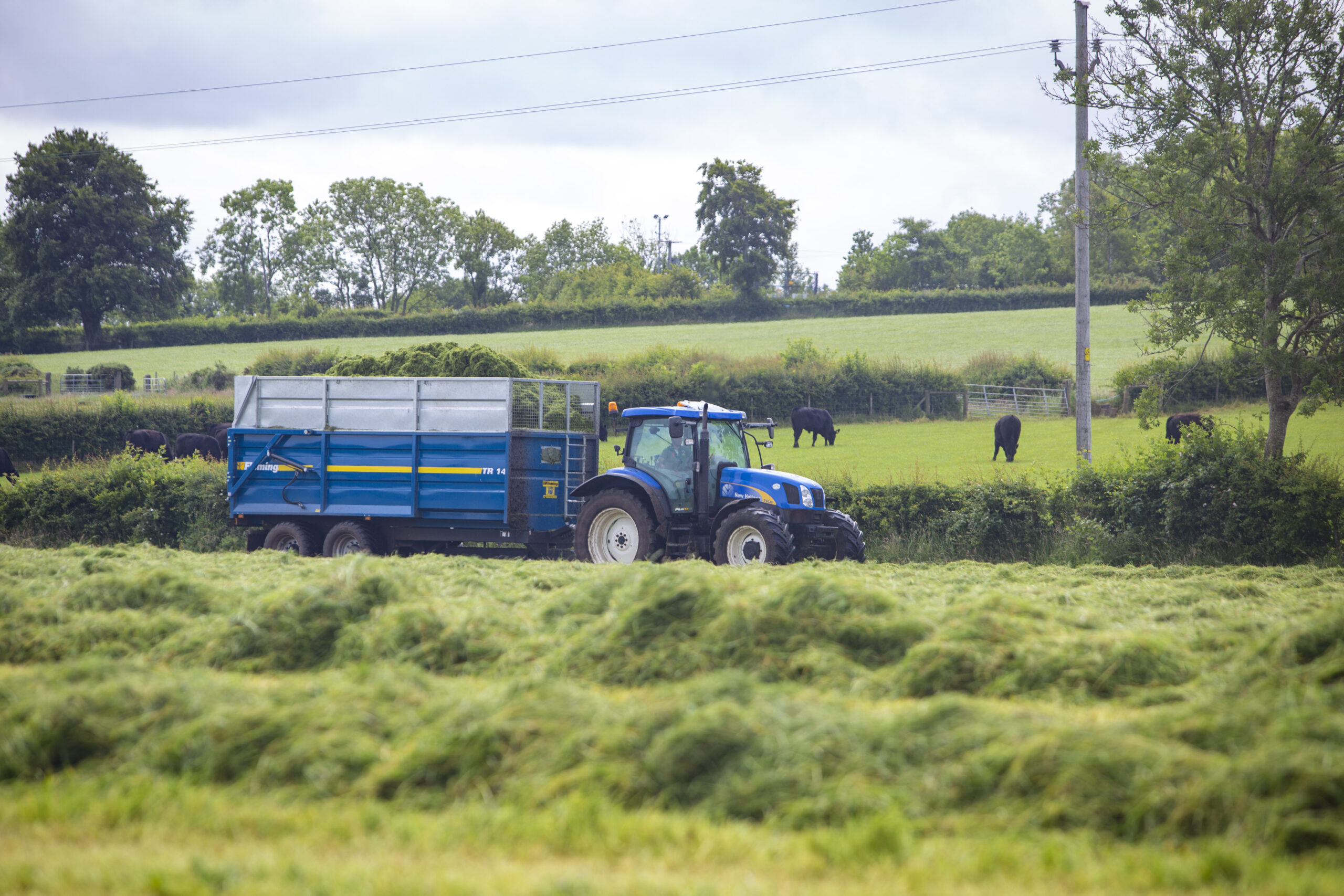

  • Galvanised silage extension kit complete with swinging back door and automatic trip
  • Manual tarpaulin cover
  • Grain chute
  • Option of 385/65/22.5 super singles


Body length5120mmWidth2350mm
Floor thickness5mmSide height2228mm
BrakesYesLoading height3350mm
Unladen weight4180kgWheel size optional385/65/22.5
Wheel size standard550/45/22.5Side height with silage sides3380mm
Unladen weight with silage sides4560kgCapacity14.93m3
