In-Line Grass Topper

Please Call for Pricing

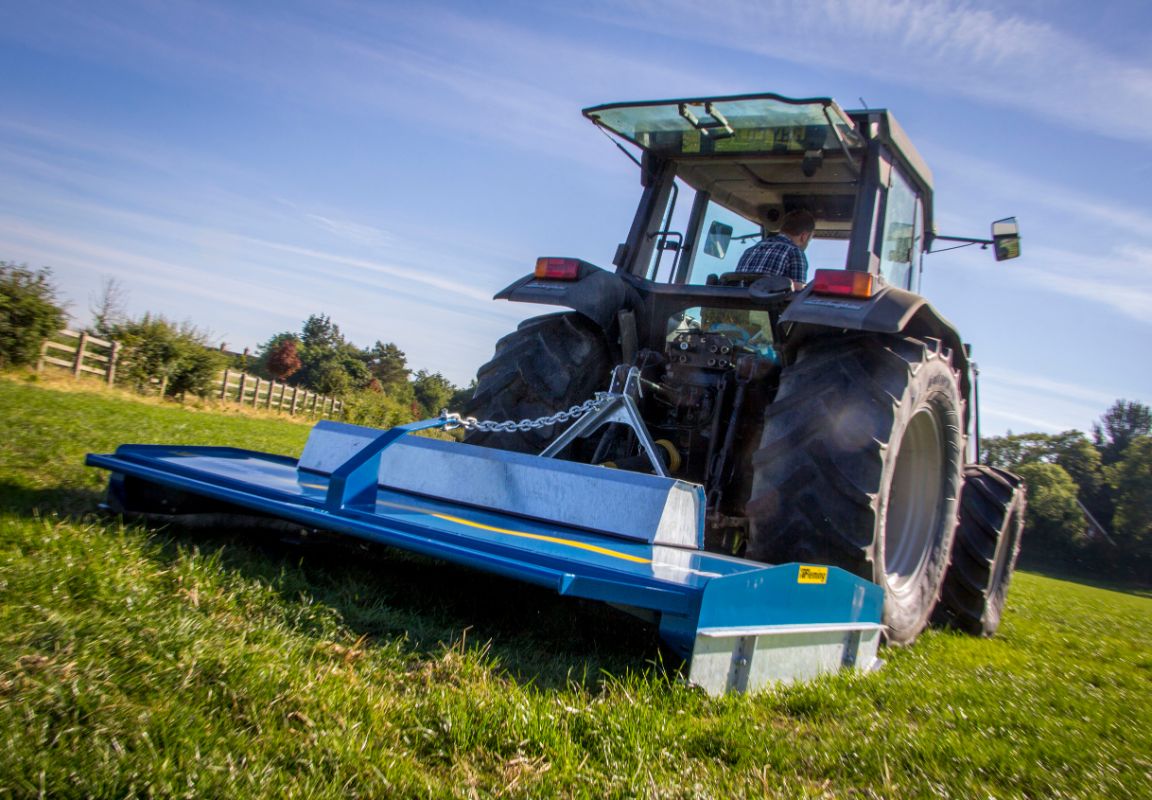

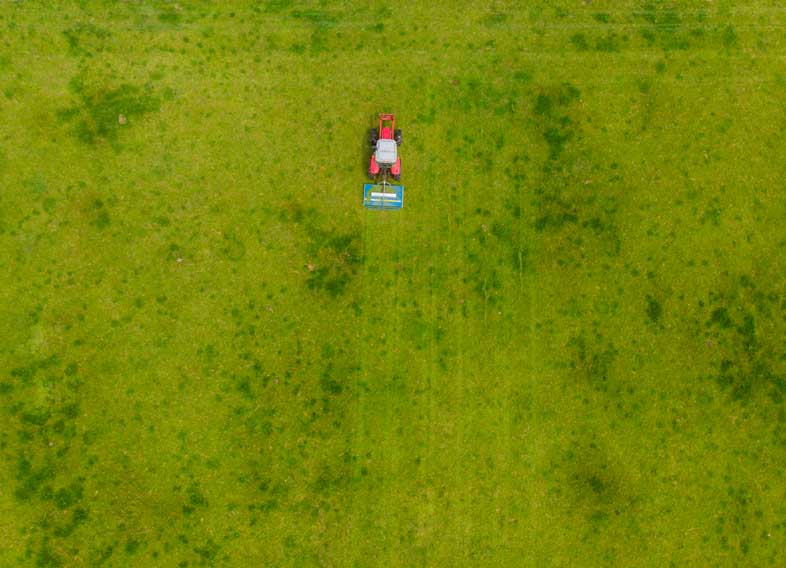

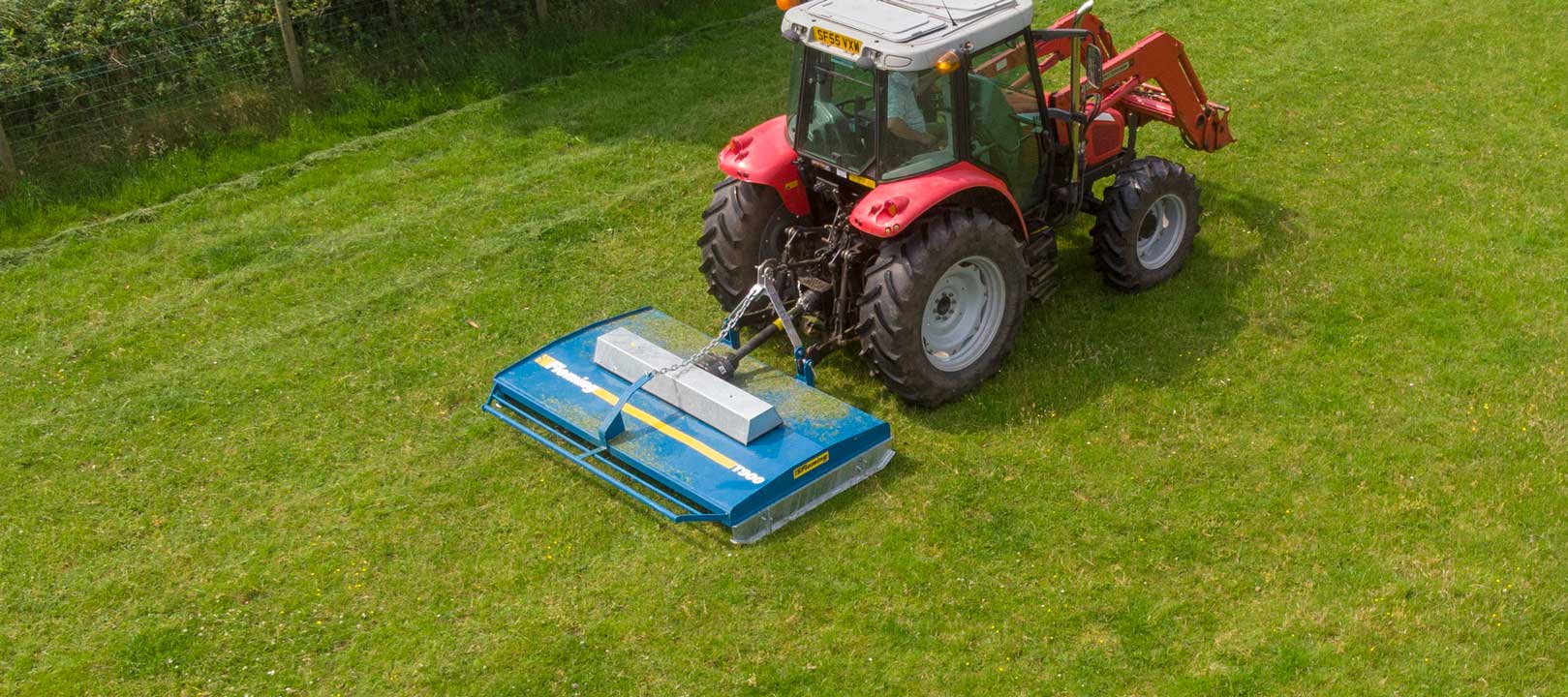

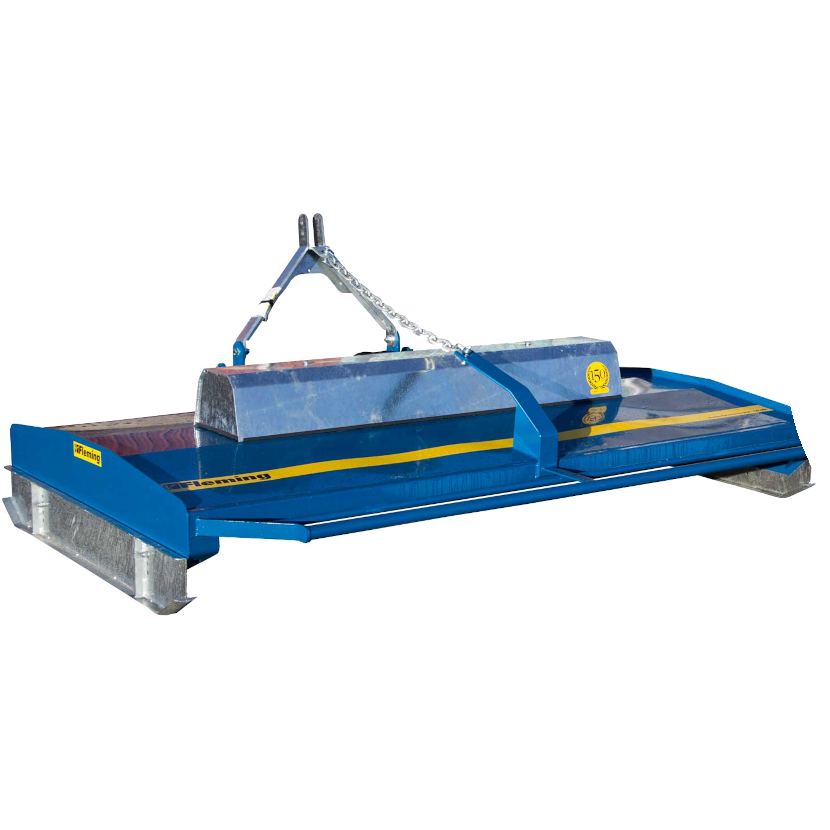

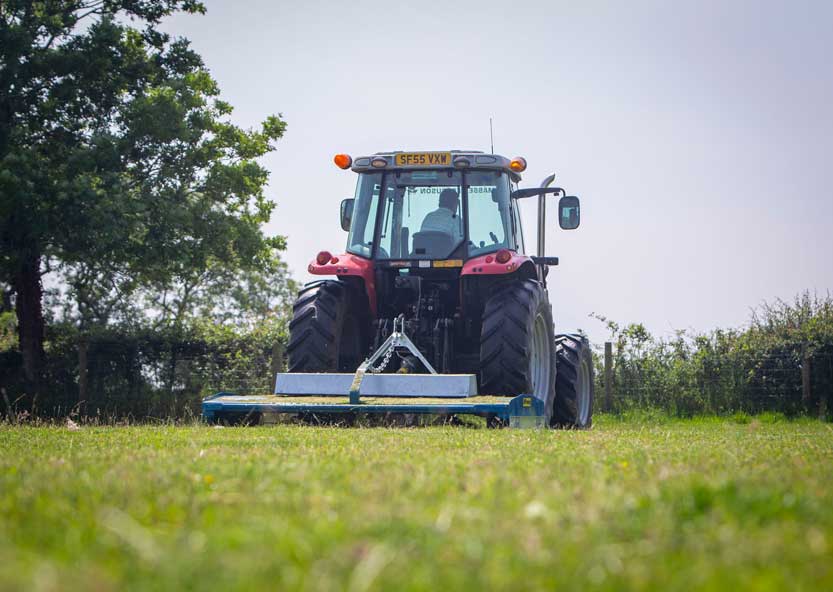

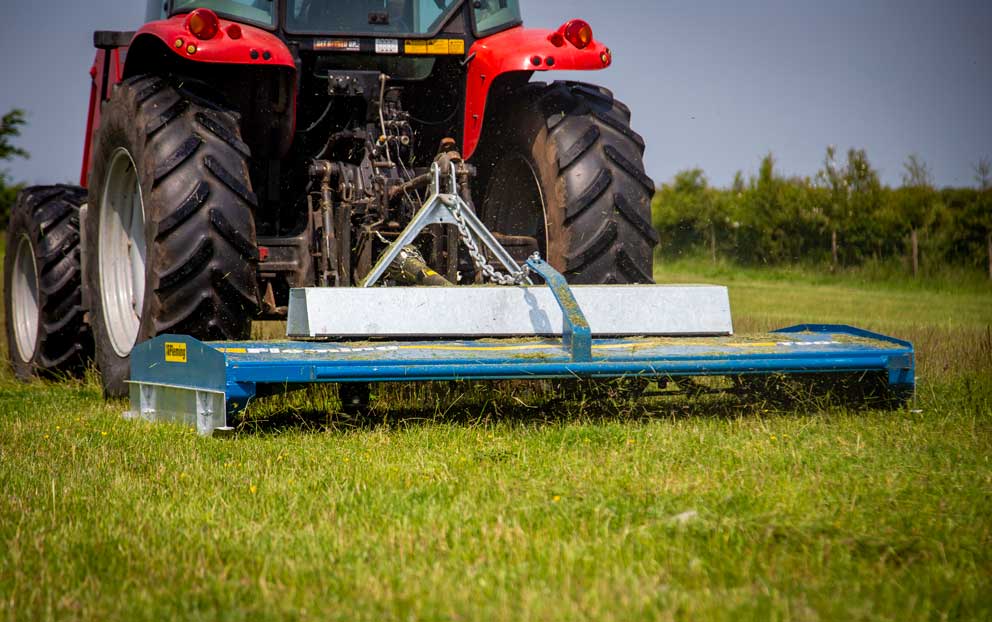

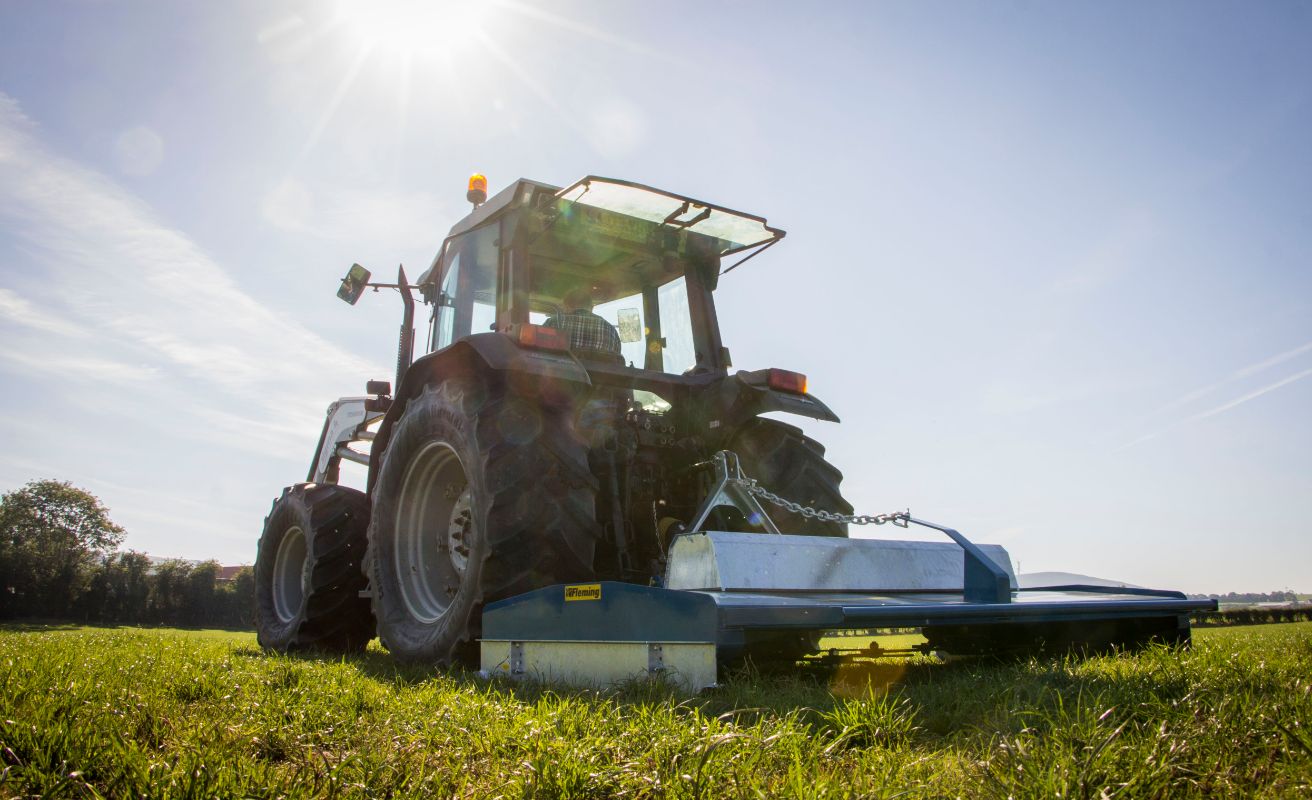

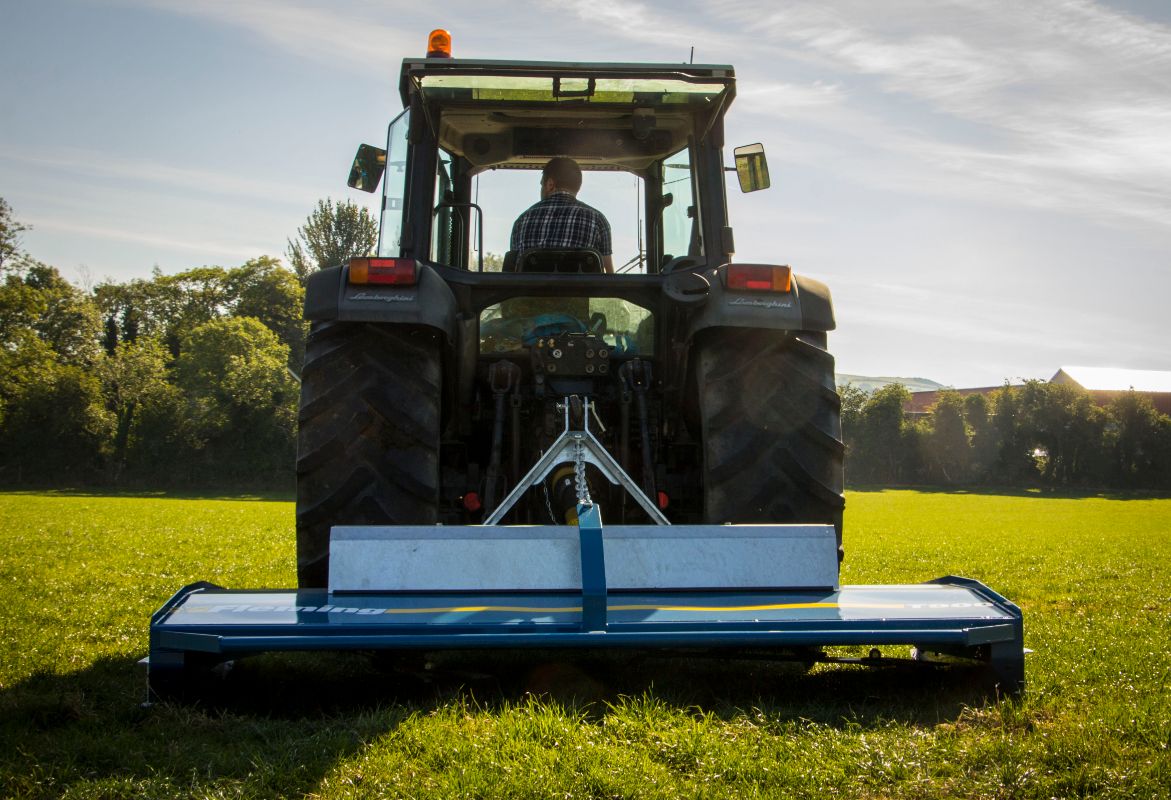

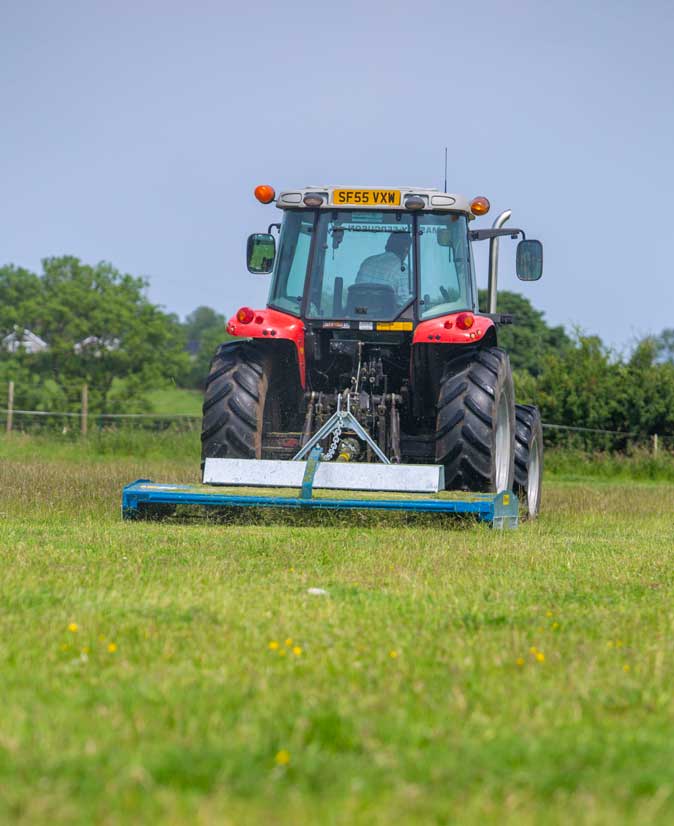

The Fleming Agri 9ft in-line grass topper has a durable and steady design. It is the perfect machine for use on agricultural land as well as for use on playing fields and other sports grounds. It has a compact design for increased stability on steep terrain. As a result it is ideal for working in areas with limited access.

Fleming offer both a standard and heavy duty model. The heavy duty model is also available in a front mounted model.

Features

  • Heavy duty one-piece 3mm deck with reinforcing beams across the length of the body for absolute rigidity
  • Heavy duty, galvanised chain support

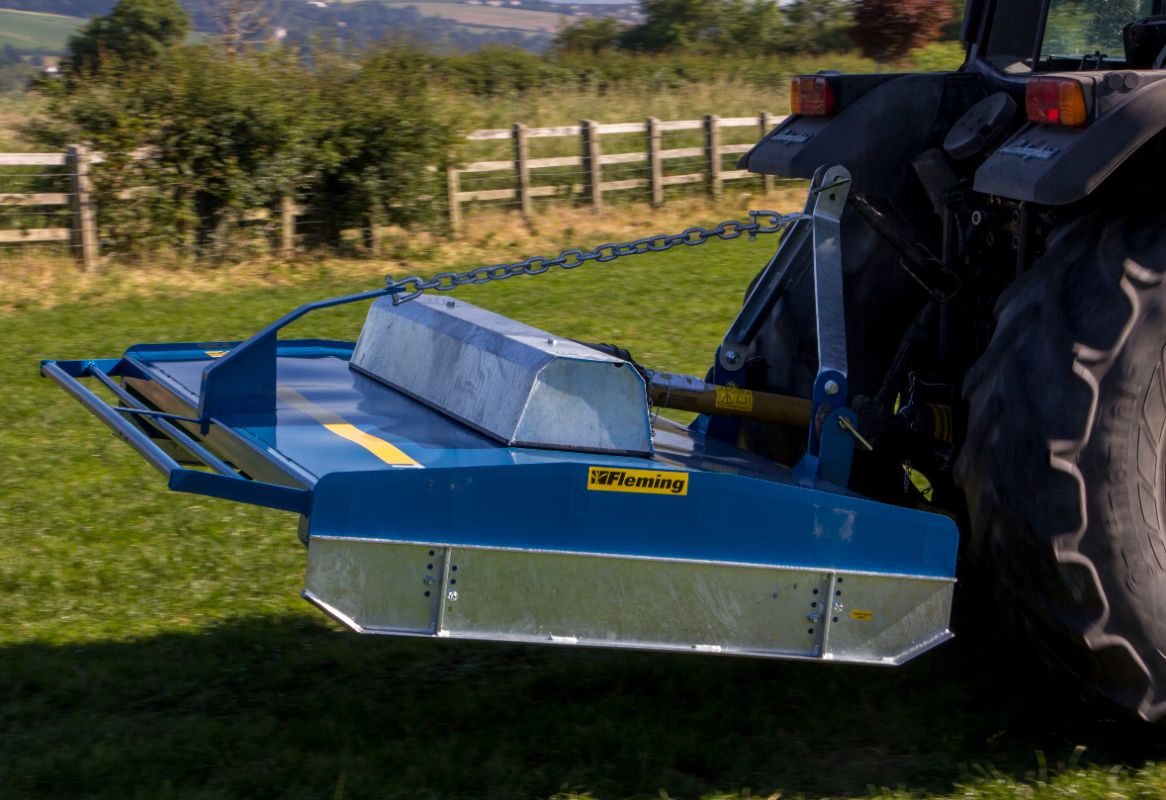

  • Galvanised headstock, guards and skids
  • Reinforced 4mm sides with convex skids
  • Heavy duty sprung steel rotors, fitted with specially designed long-life hardened steel cutting blades with offset flute to disperse the grass evenly
  • Gearbox and rotors mounted on a one-piece, heavy duty central base plate with structural box support for use on rough terrain
  • Floating headstock for constant ground contact and even cut
  • PTO with over-run and shear bolt protection against rotor impact
  • Double jaw support lift arms brackets with Cat. 2 lift arm pins
  • 55hp Comer gearbox with straight drive-line protected by rubber couplings on standard model

Heavy Duty Model

  • Heavy duty model has 75hp gearbox
  • Heavy duty model has flexible knuckle drive line, protected by rubber couplings
  • Heavy duty model fitted with fluted blades and 4 additional straight blades for mulching effect when cutting

Specifications

TOP9
Transport width2740mmNo of rotors2
No of blades4No of gearboxes3
Gearbox rating55hpWeight494kg
HP requried70
TOP9INHD
Transport width2740mmNo of rotors2
No of blades8No of gearboxes3
Gearbox rating75hpWeight500kg
HP required80
TOP9HDOF
Transport width2740mmNo of rotors2
No of blades8No of gearboxes3
Gearbox rating75hpWeight500kg
HP required80
