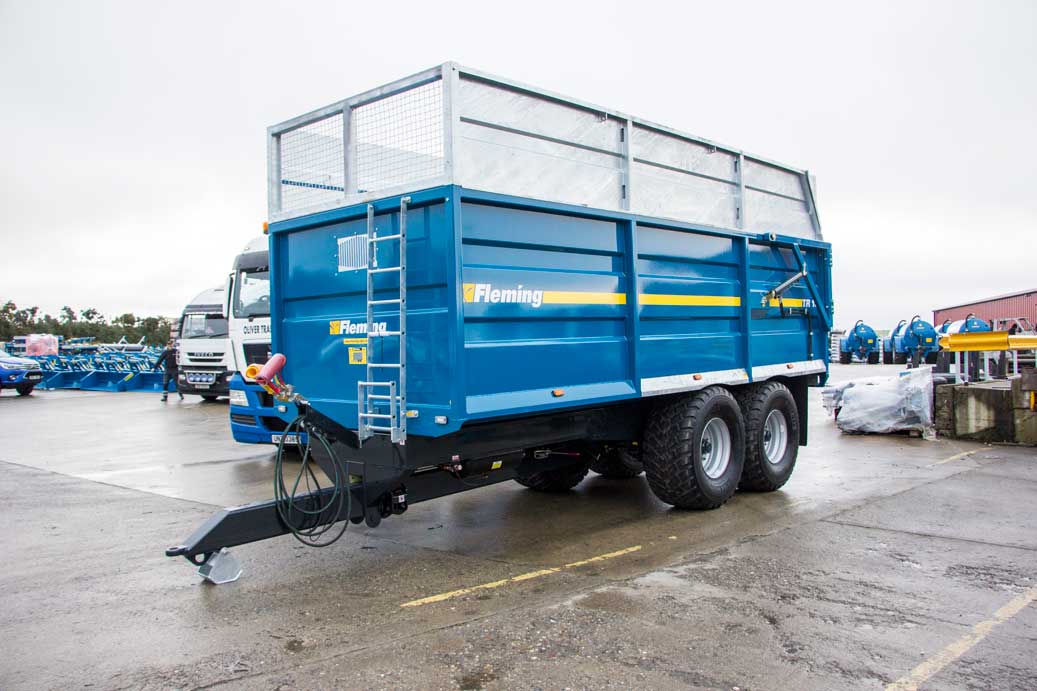

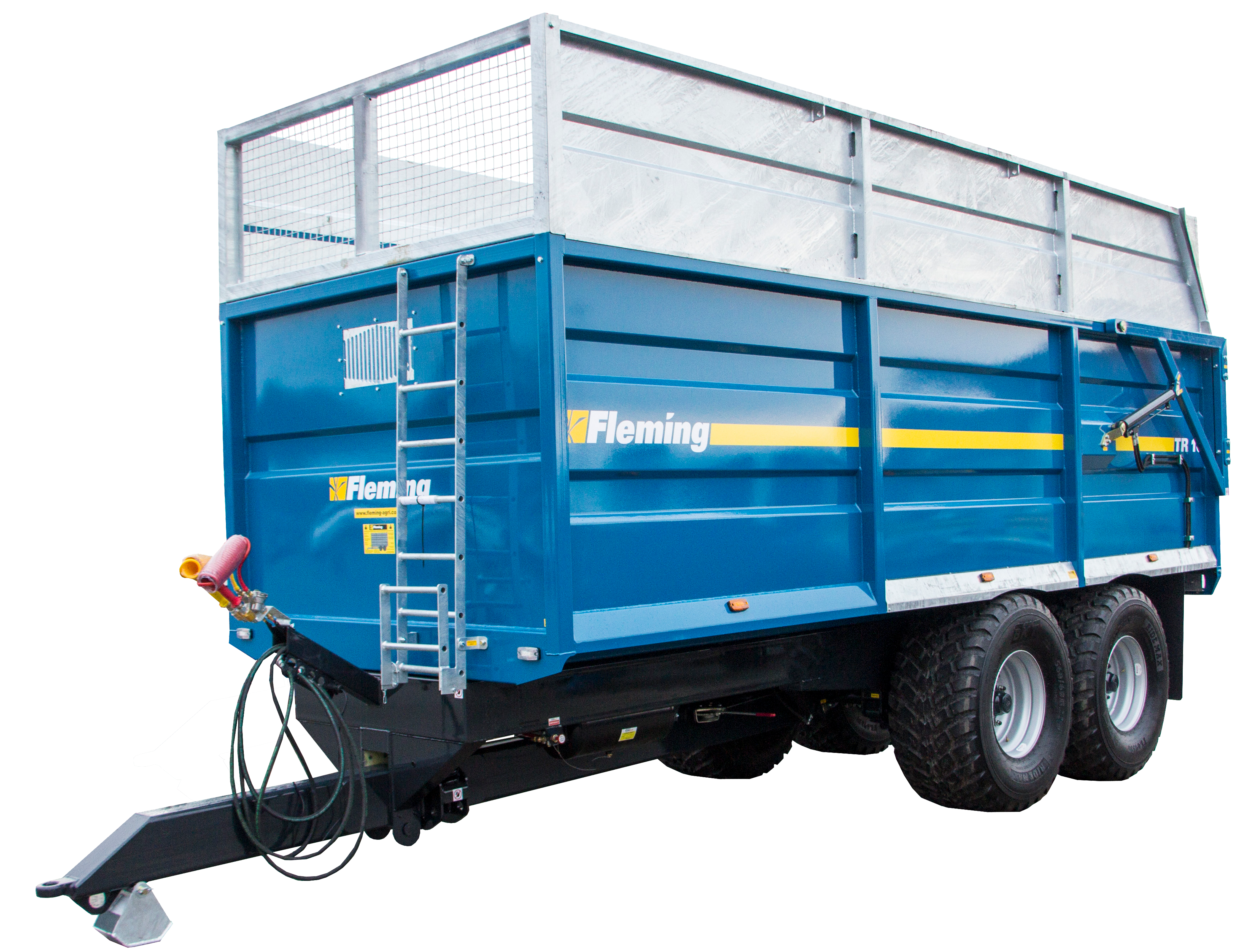

Fleming 16 Ton Monocoque Tipping Trailer

Please Call for Pricing

The Fleming Agri heavy duty 16 ton tipping trailer has a solid construction monocoque body. As a result this gives the trailer strength to satisfy the requirements of modern trailer operations. This 16,000kg agricultural trailer is ideal for grain, silage and maize/whole crop.

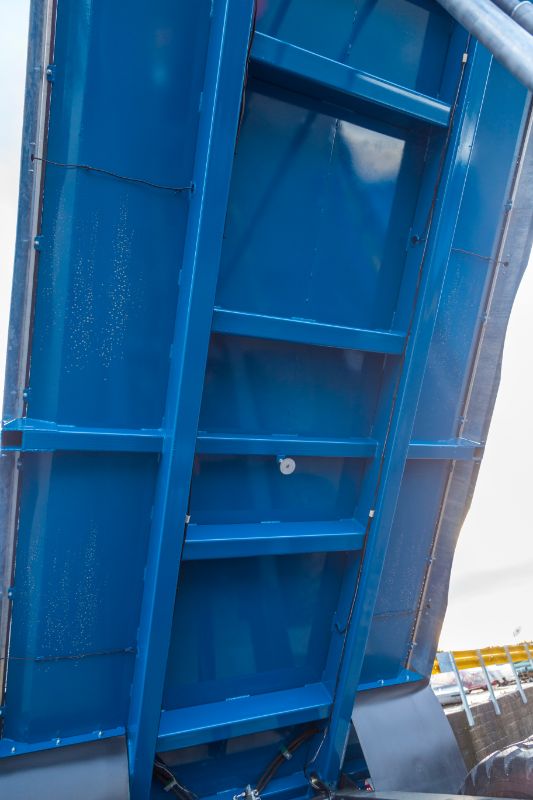

High tensile steel plate and hollow section form the chassis and body parts to help reduce weight. In addition this increases the payload without compromising structural strength.

Features

  • Unique design sprung drawbar provides excellent ride characteristics working in combination with the multi leaf spring bogie suspension to reduce stress on the towing vehicle and operator

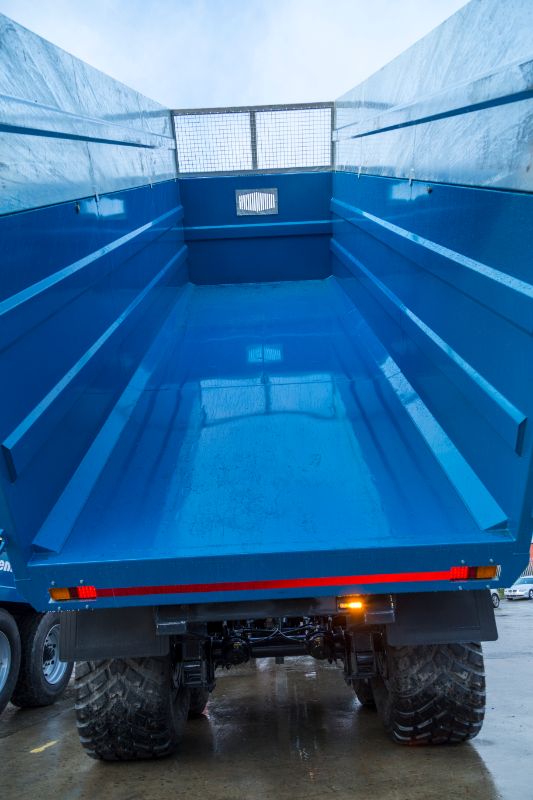

  • Tapered body ensures clean unloading

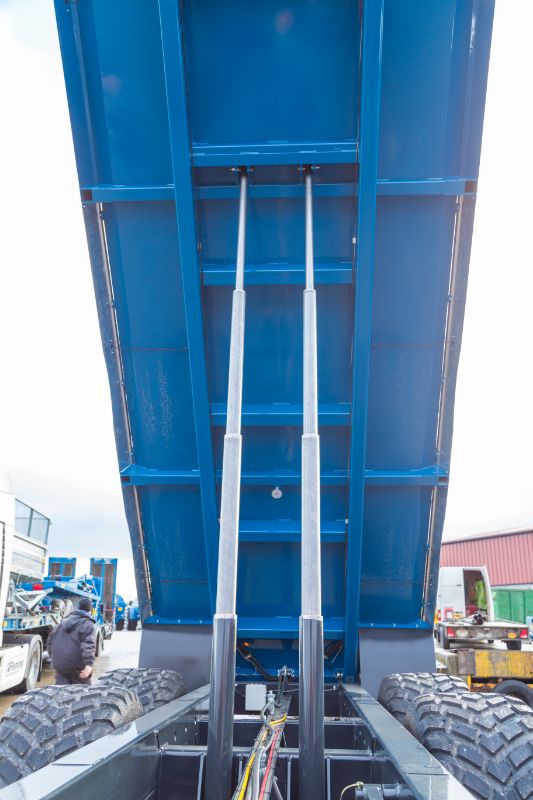

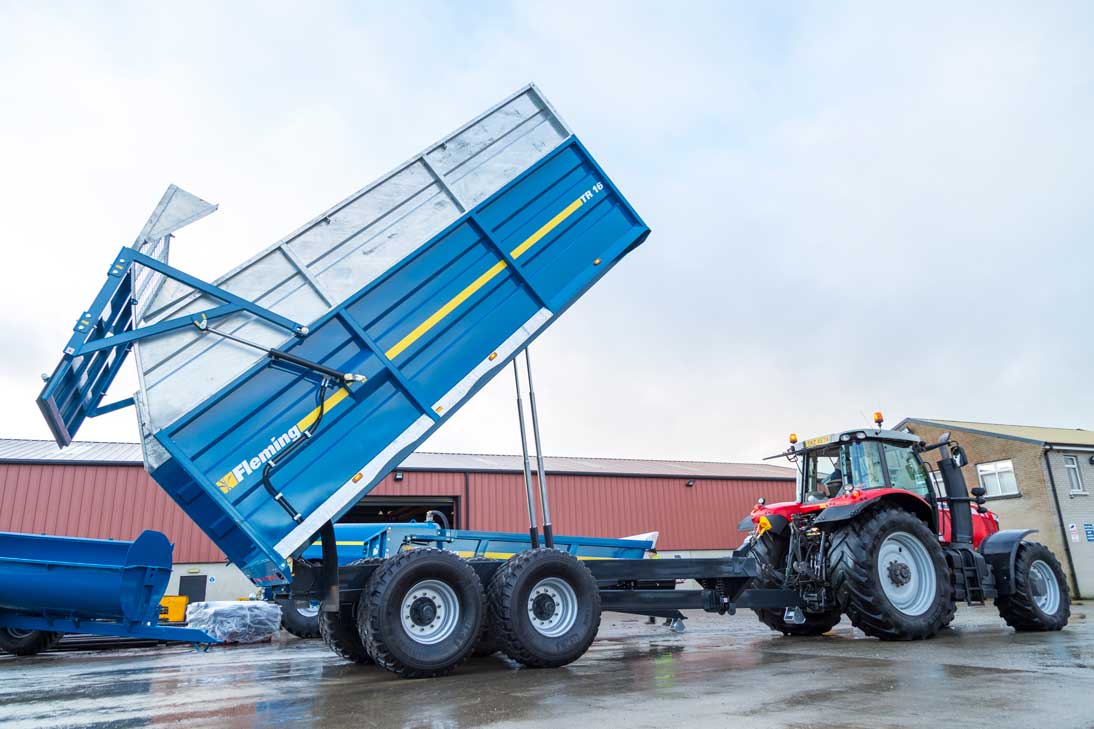

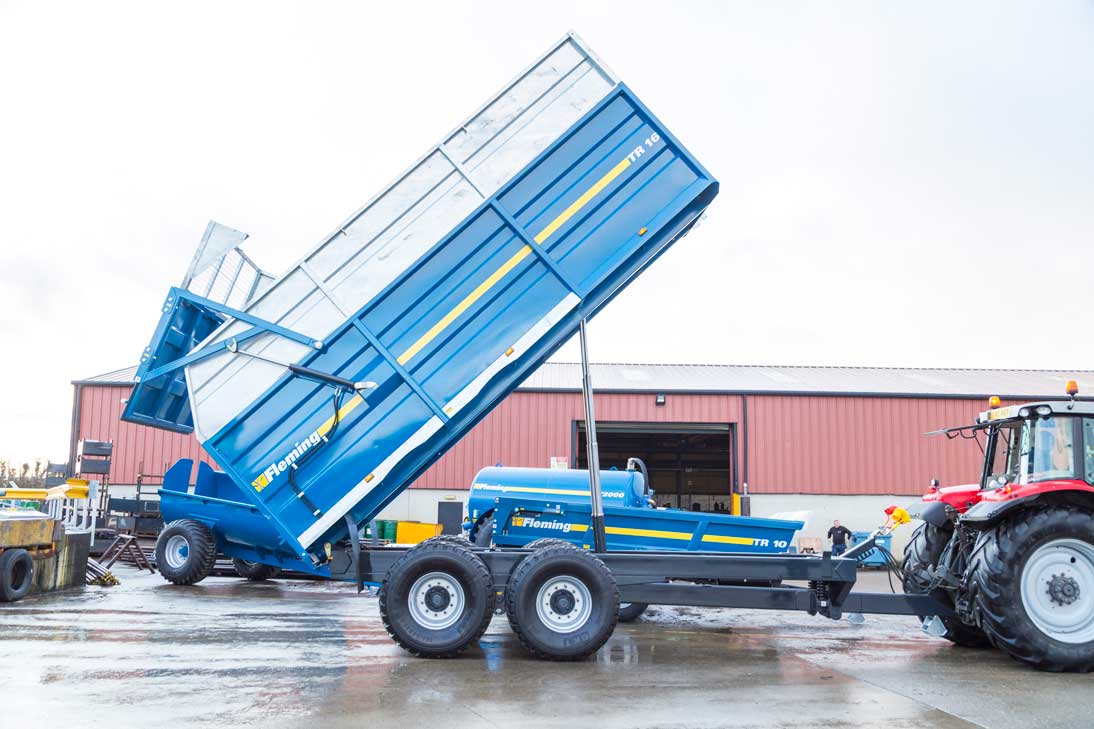

  • Heavy duty tipping rams ensure a fast unloading time

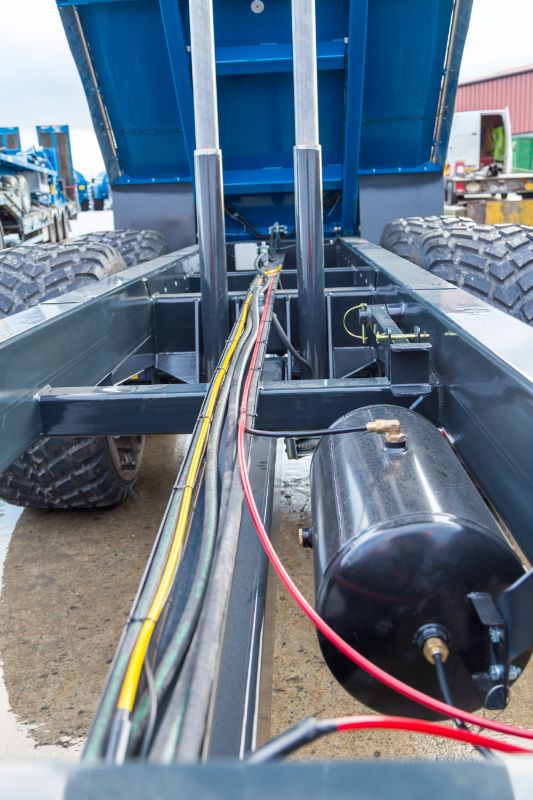

  • Hydraulic hoses safely concealed within the chassis
  • 10 stud heavy duty commercial axle

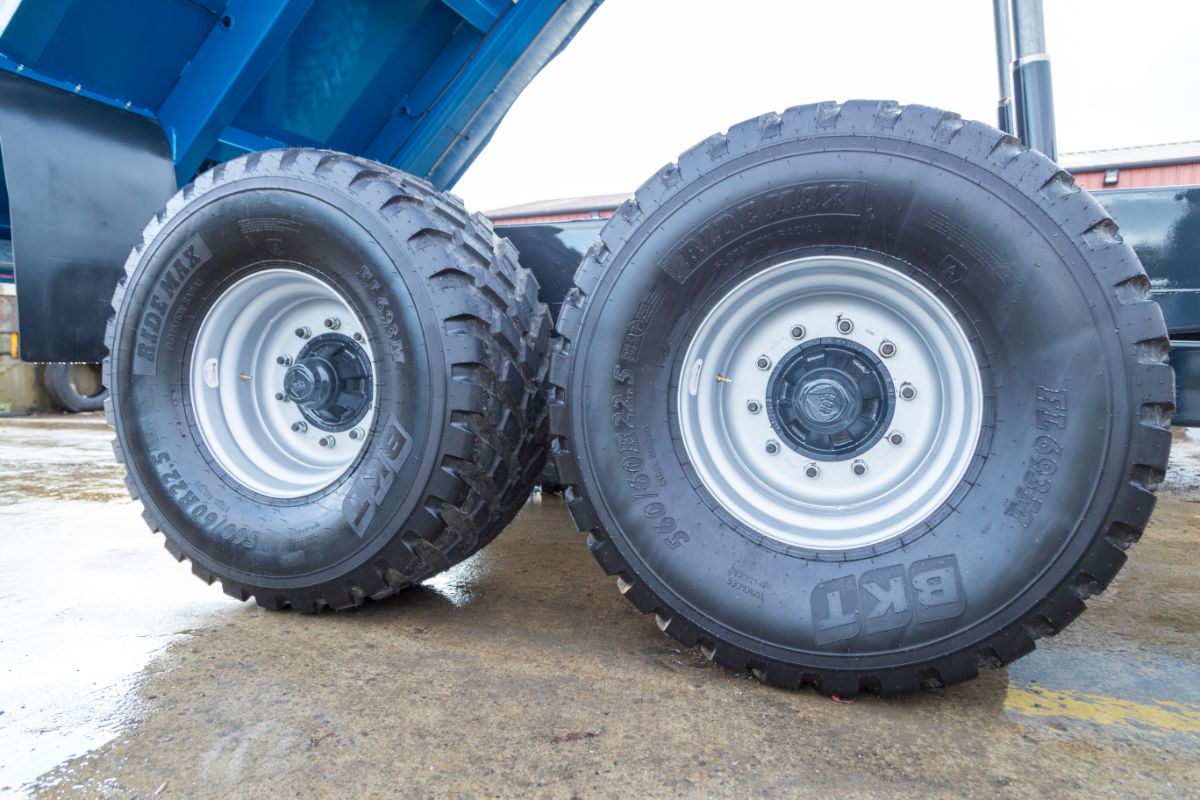

  • 550/45/22.5 floatation tyres
  • 40mm EN8 towing eye
  • Hydraulic hose carrier
  • Access ladder
  • Heavy duty 5mm floor
  • Front viewing window

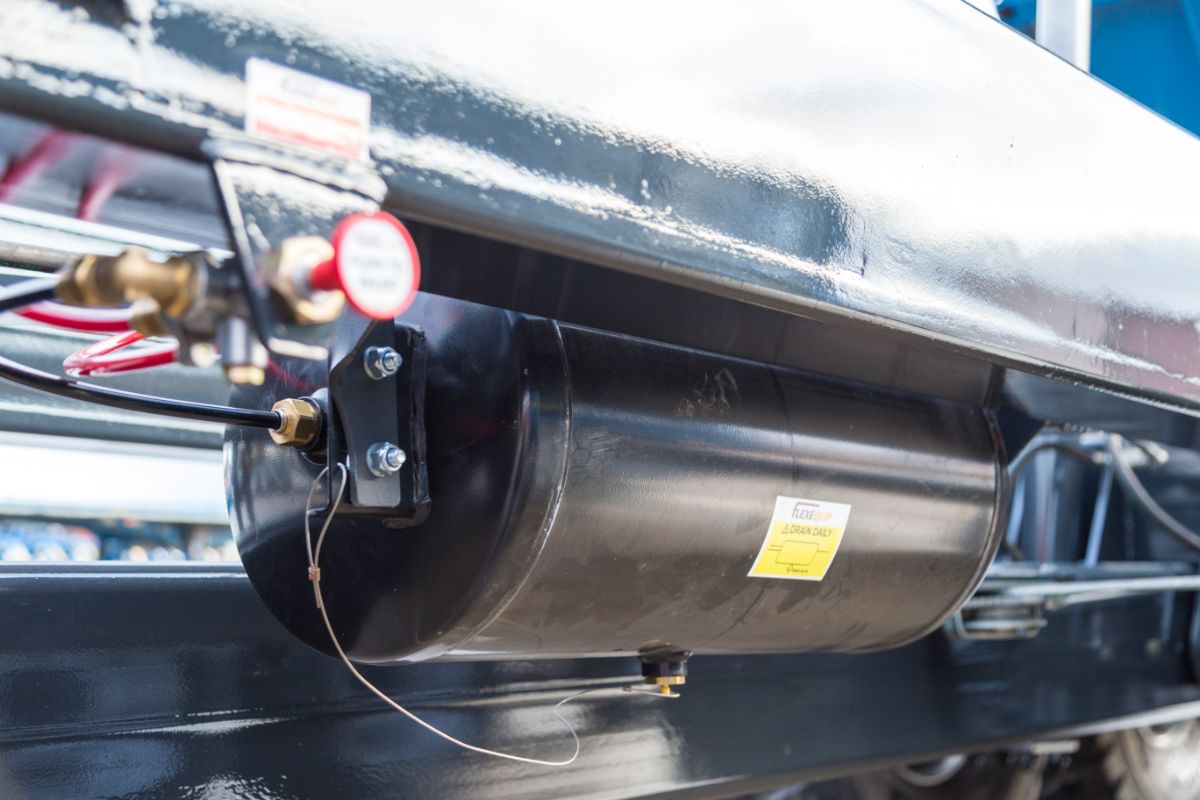

  • Air brakes with load sensing valve

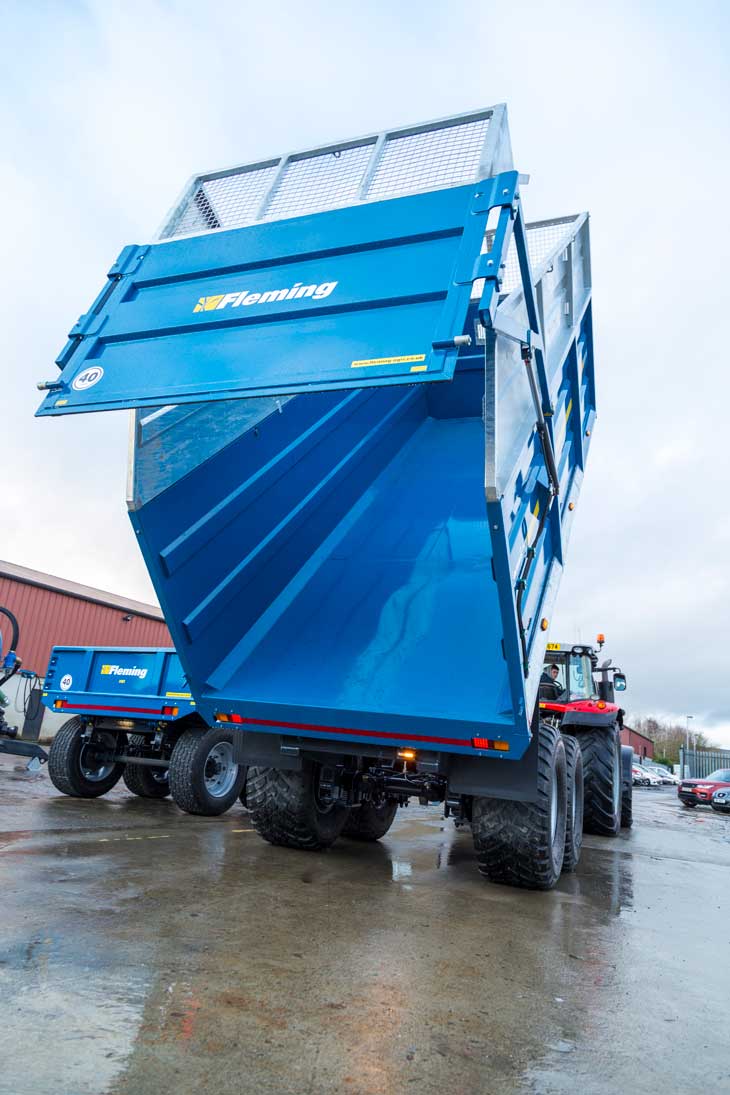

  • Hydraulic back door complete with locking safety valve to avoid accidental spillage

Options

  • Galvanised silage extension kit complete with swinging back door and automatic trip
  • Manual or roll over tarpaulin cover
  • Grain chute

Specifications

TR16
Body length6.2m (20ft4″)Width2.4m (7ft11″)
Floor thickness5mmSide height150cm
Loading height to trailer floor133cmLoading height to top of sides283cm
LightsYESAir brakesYES
Unladen weight5000kgCubic capacity (m3)21
Wheel size standard560/65/22.5 (10 Stud)Wheel size optional385/65/22.5
Brake size127DIA, BR 420×180
