Fleming 14 Ton Monocoque Tipping Trailer

Please Call for Pricing

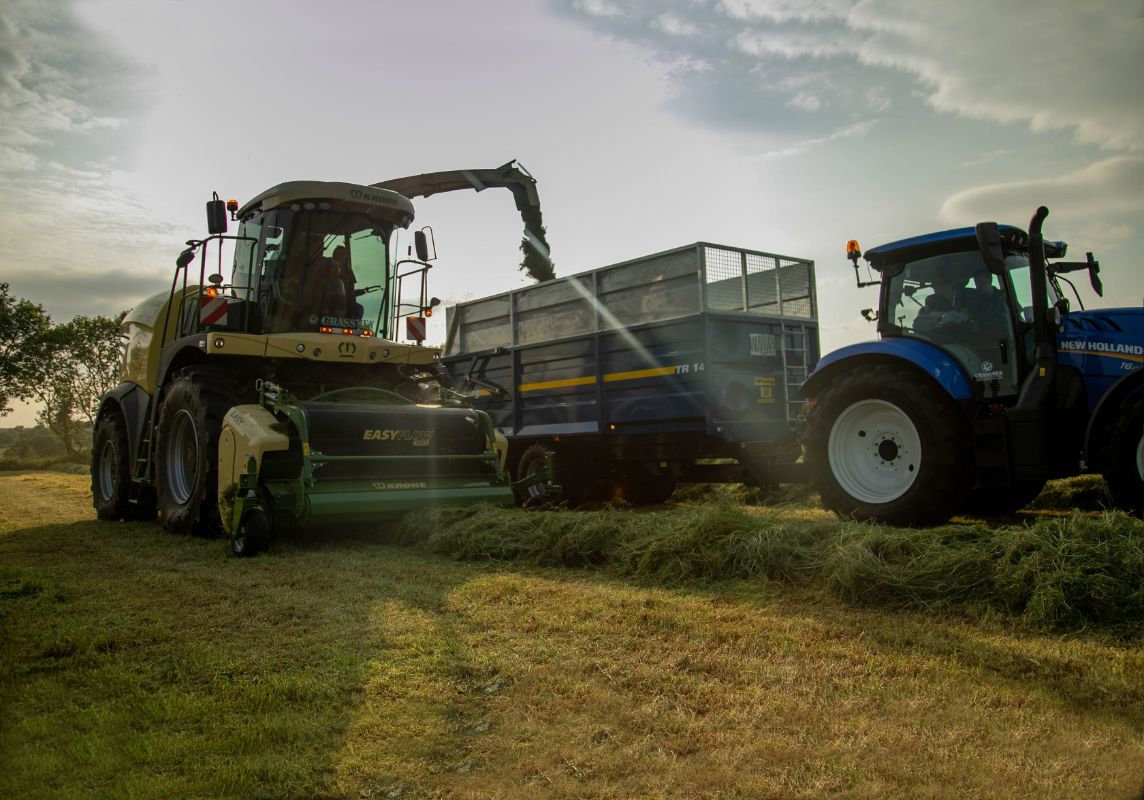

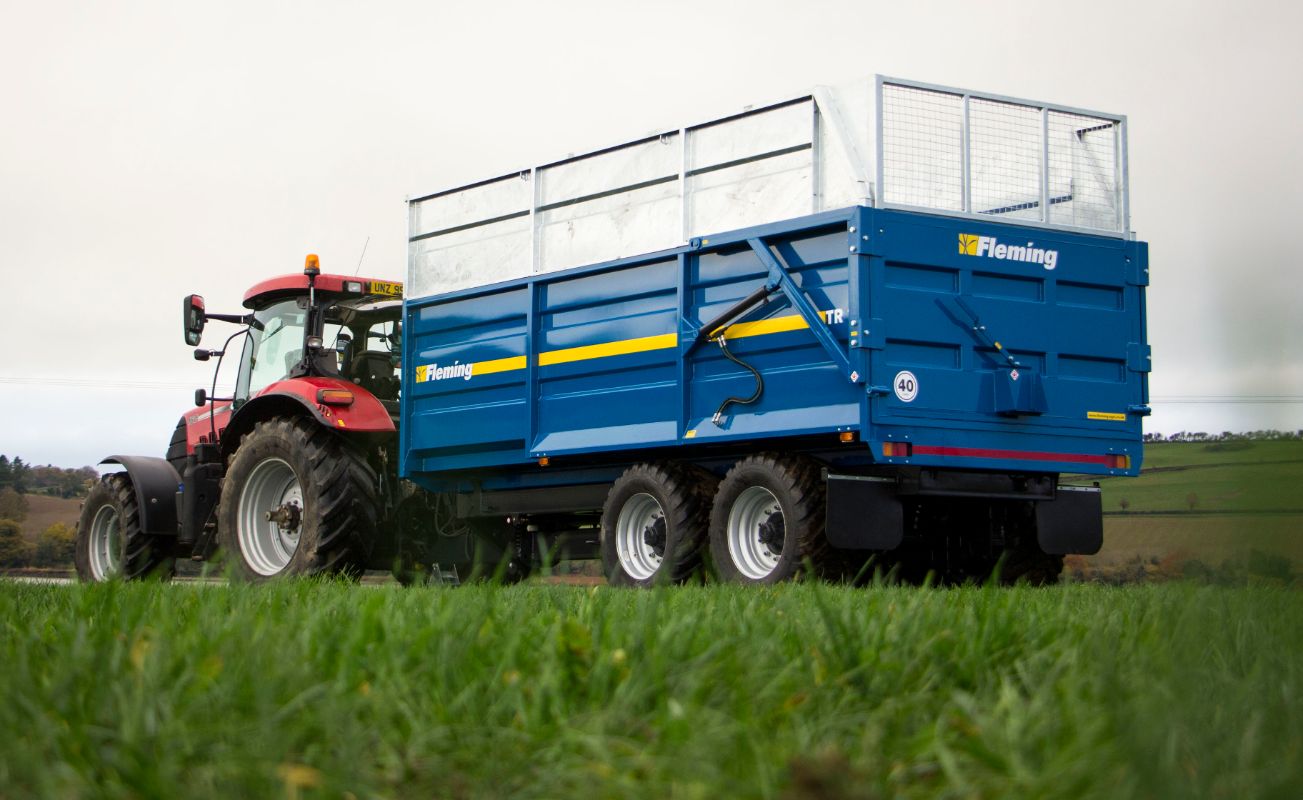

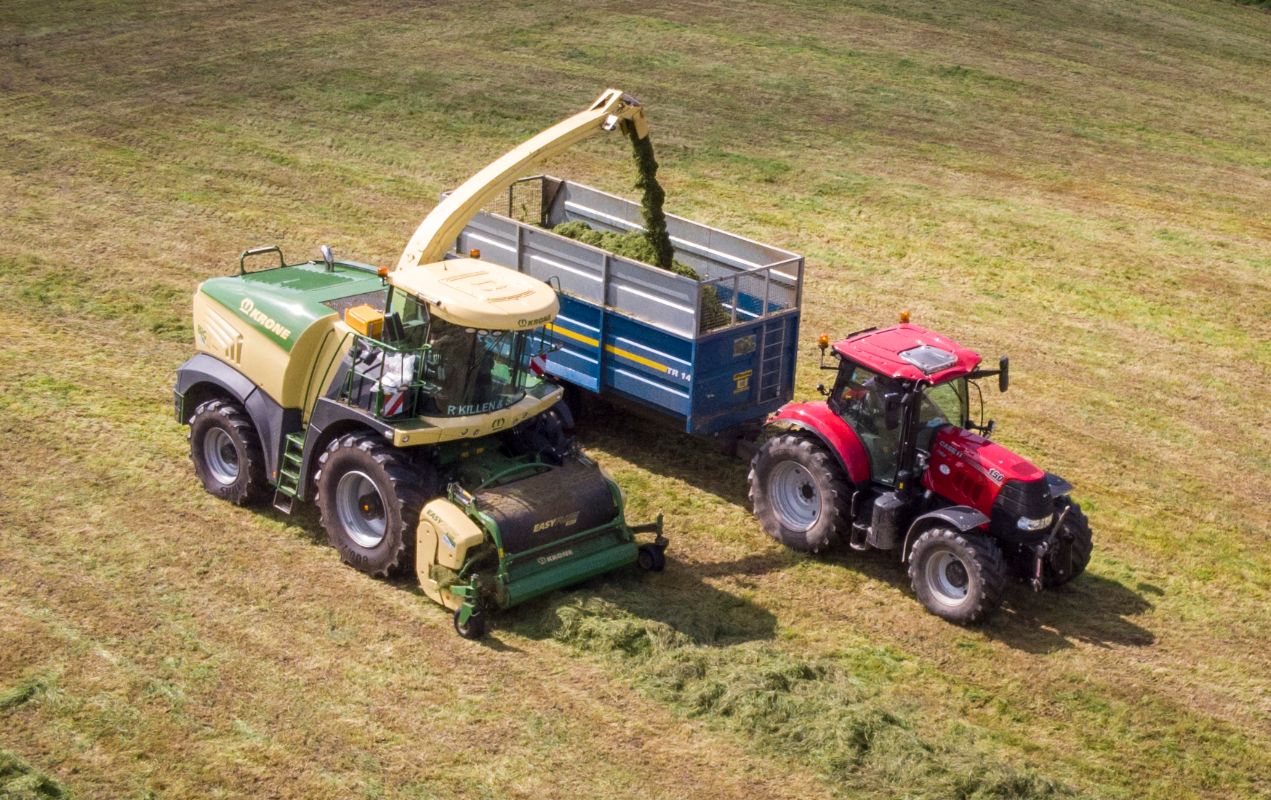

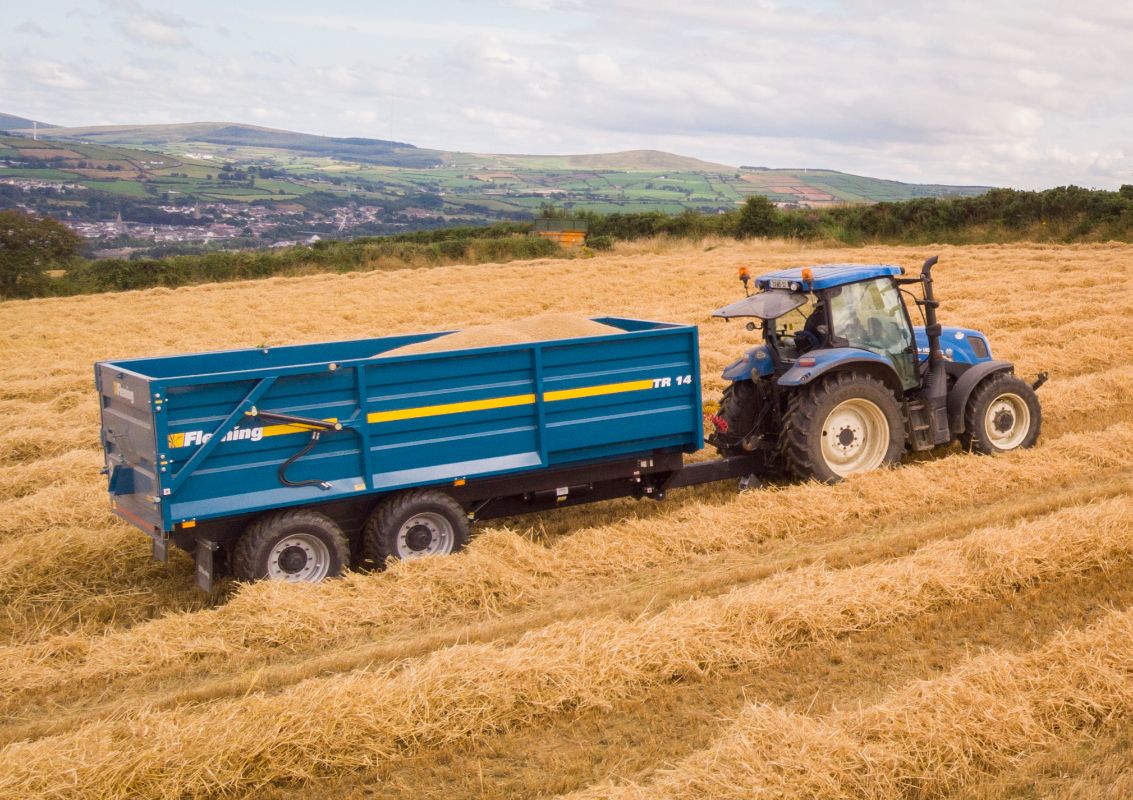

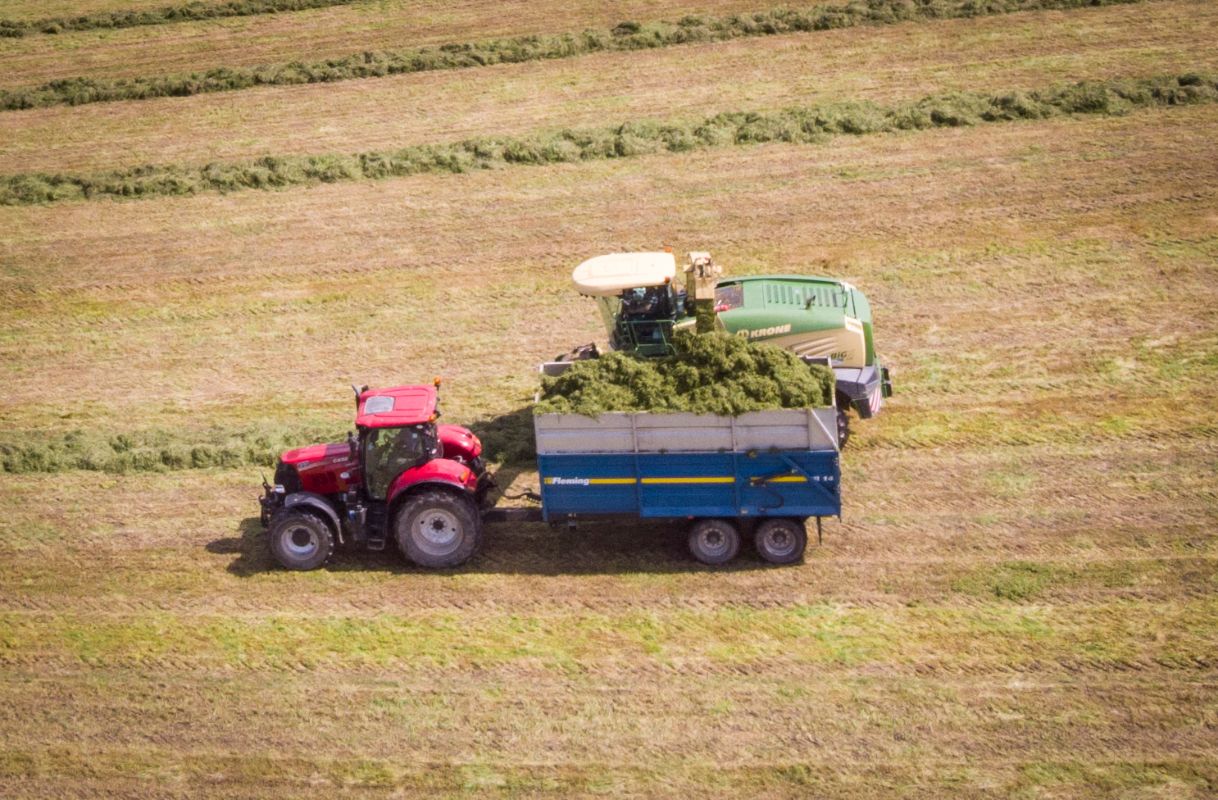

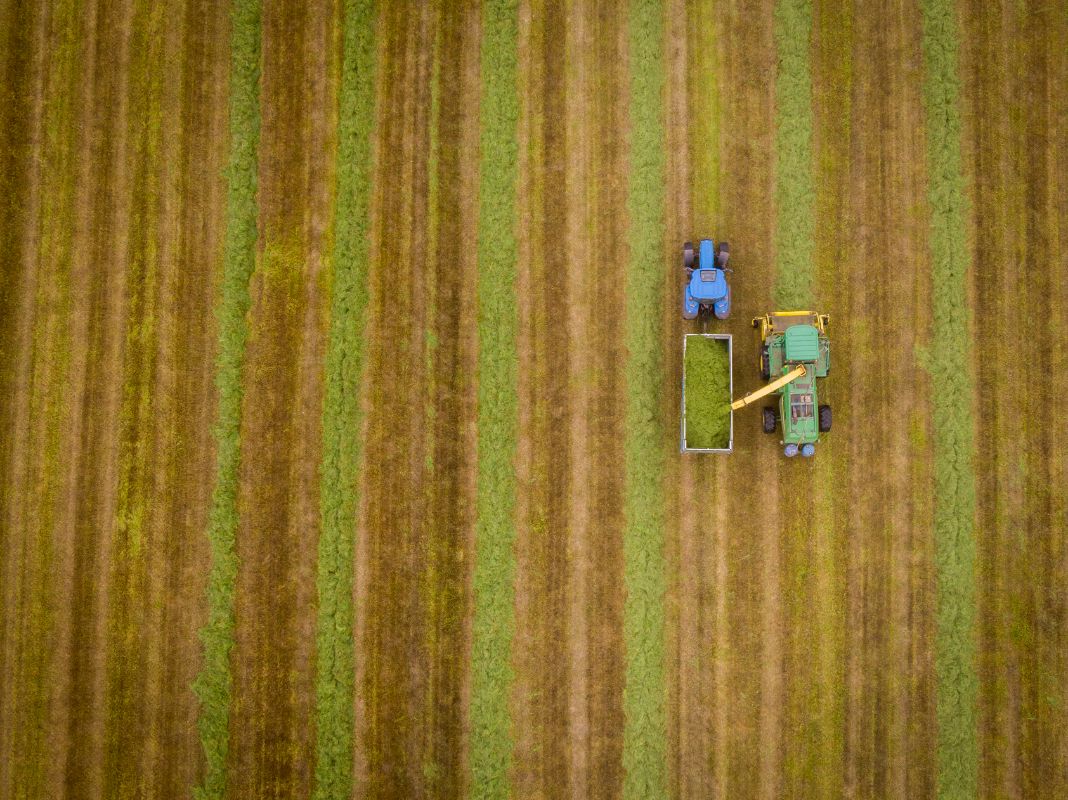

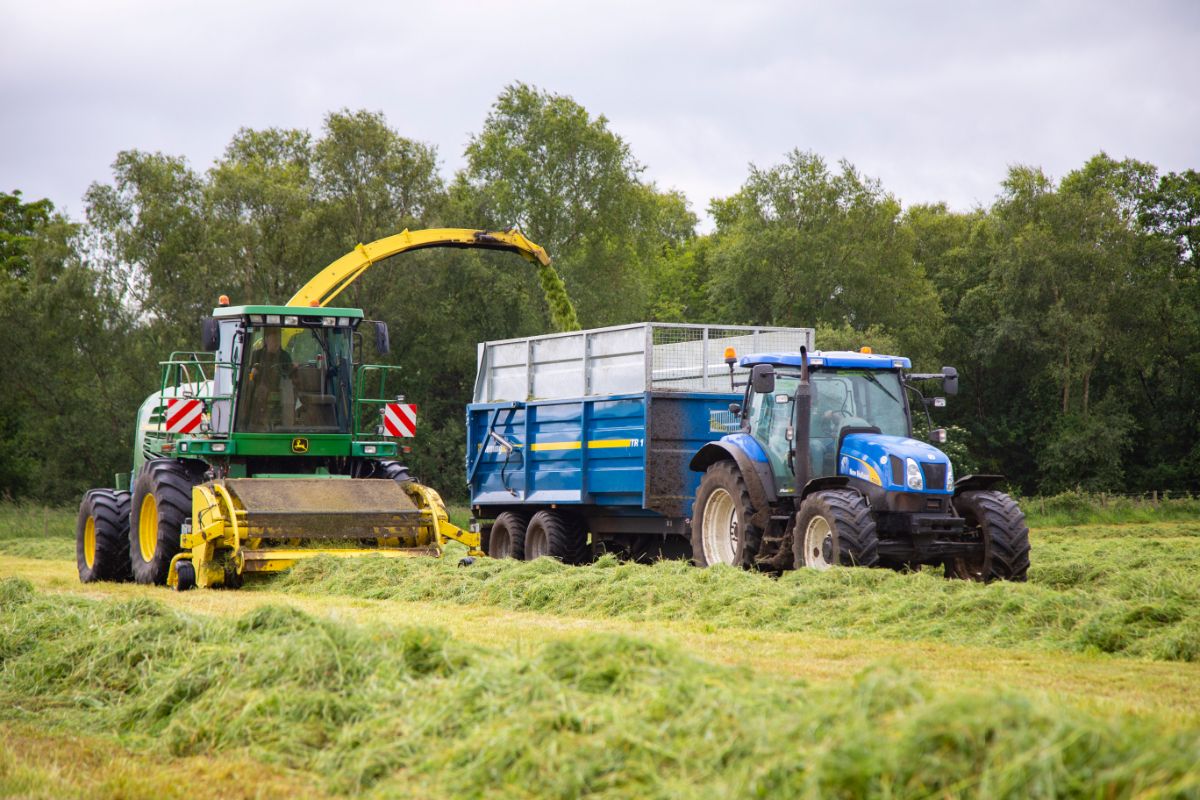

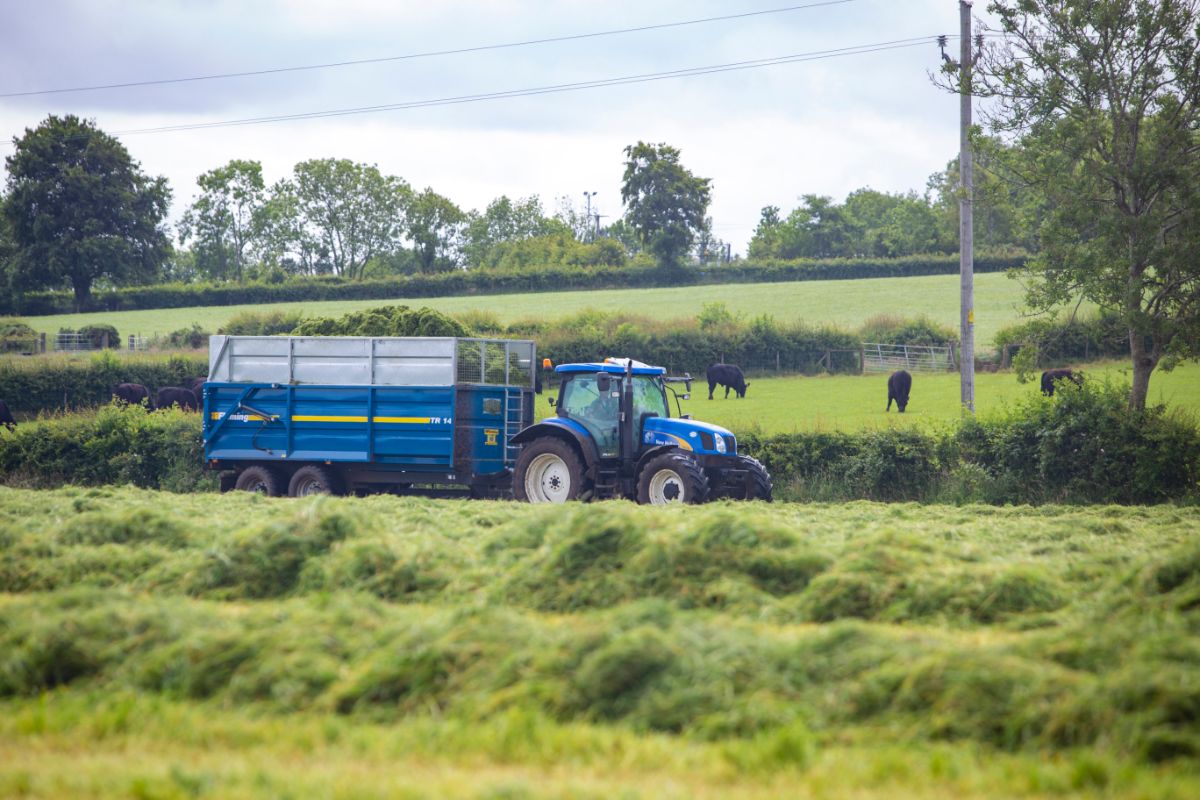

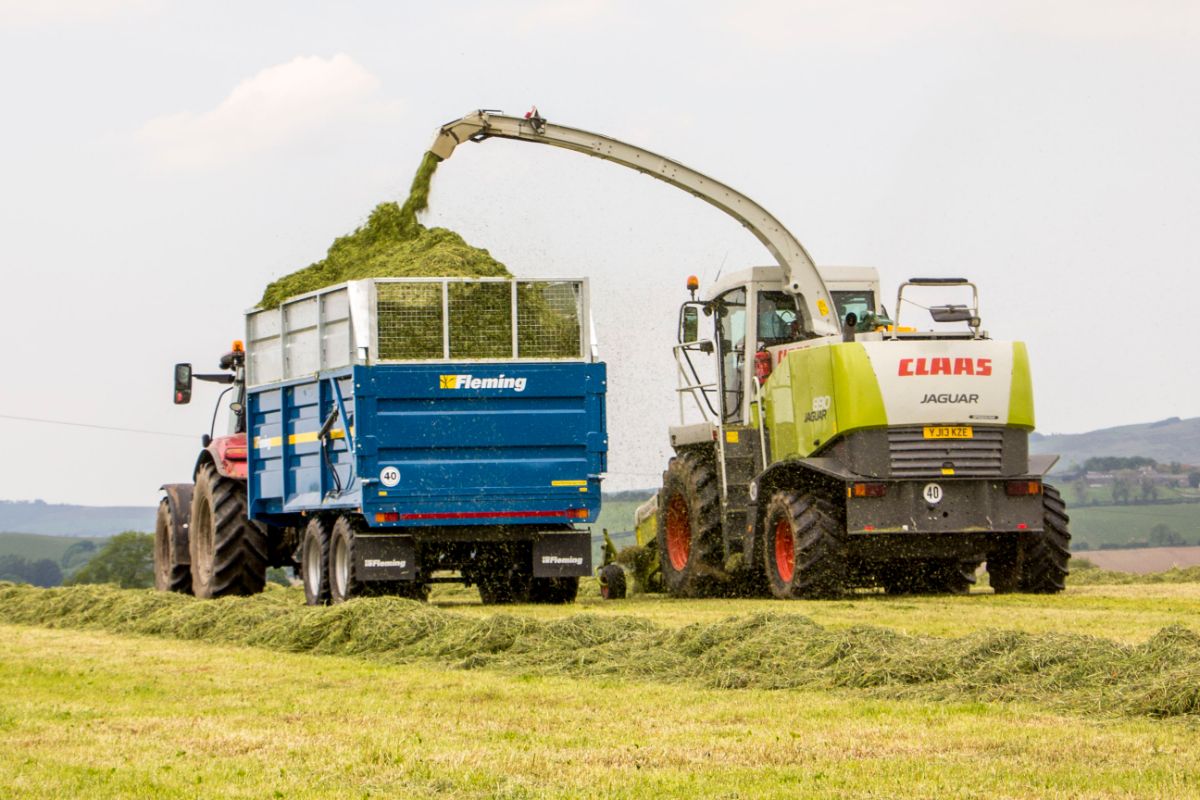

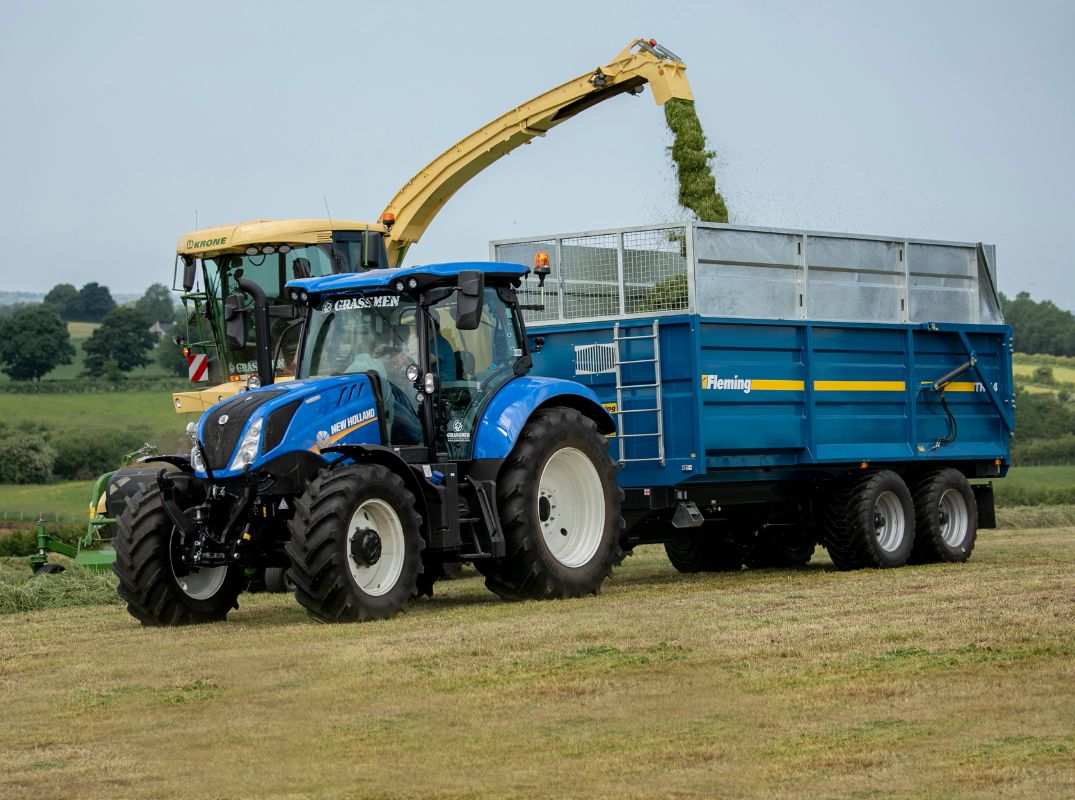

The Fleming Agri heavy duty 14 ton tipping trailer has a solid construction monocoque body. As a result this gives the trailer strength to satisfy the requirements of modern trailer operations. This 14,000kg agricultural trailer is ideal for grain, silage and maize/whole crop.

High tensile steel plate and hollow section form the chassis and body parts to help reduce weight. In addition this increases the payload without compromising structural strength.

Features

  • Unique design sprung drawbar provides excellent ride characteristics working in combination with the multi leaf spring bogie suspension to reduce stress on the towing vehicle and operator
  • Tapered body ensures clean unloading

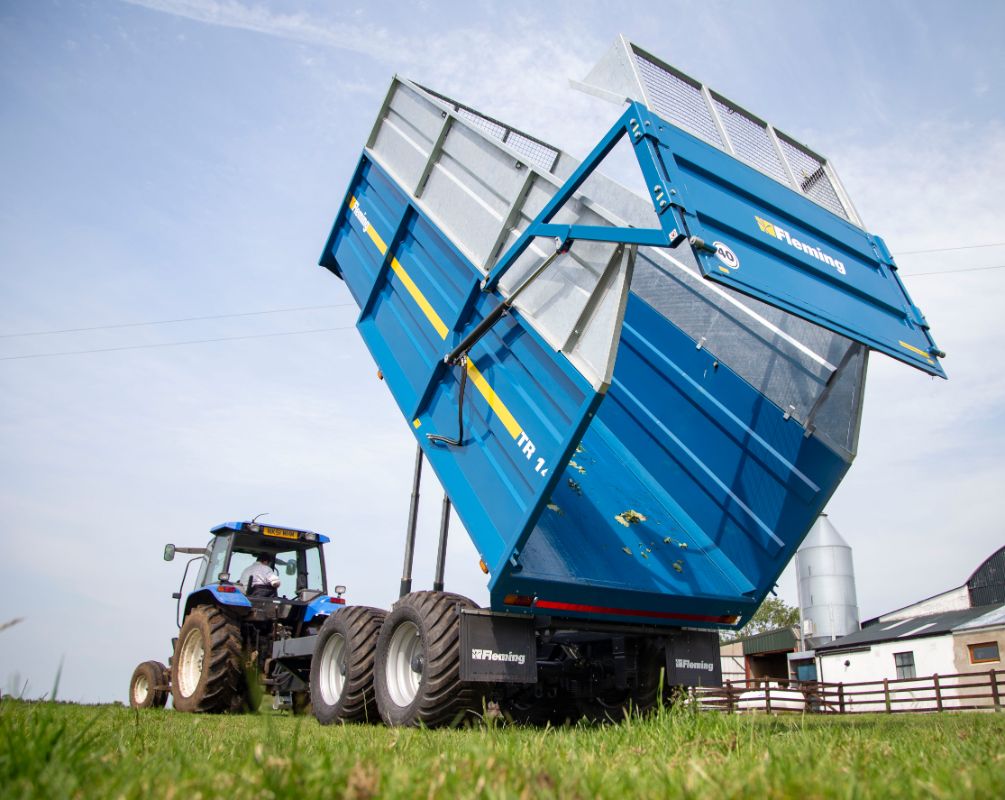

  • Heavy duty tipping rams ensures a fast unloading time
  • Hydraulic hoses safely concealed within the chassis
  • 10 stud heavy duty commercial axle
  • 550/45/22.5 floatation tyres
  • 40mm EN8 towing eye
  • Hydraulic hose carrier
  • Access ladder
  • Heavy duty 5mm floor
  • Front viewing window

Options

  • Hydraulic back door complete with locking safety valve to avoid accidental spillage

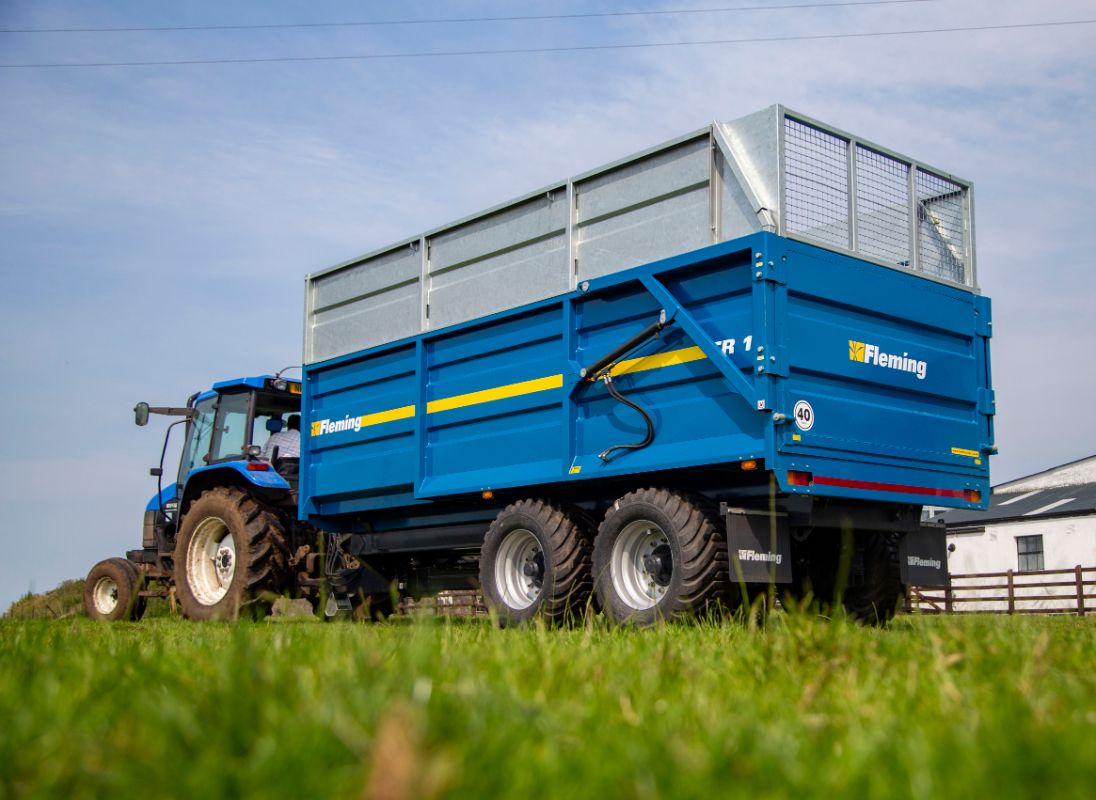

  • Galvanised silage extension kit complete with swinging back door and automatic trip
  • Manual or roll over tarpaulin cover
  • Grain chute
  • Air brakes with load sensing valve

Specifications

TR14
Body length5700mmWidth2400mm
Floor thickness5mmSide height1300mm
Air brakesOptionalLoading height1220mm
Unladen weight4660kgWheel size optional550 x 45 x 22.5
Wheel size standard550 x 45 x 22.5Side height with silage sides3380mm
Unladen weight with silage sides5100kgBrake size127DIA, BR 420×180
Capacity16.48m3
