Superfloat Grass Topper

Please Call for Pricing

The Fleming Agri superfloat grass topper gives an impressive finish on parkland, sports fields, paddocks and agricultural land. It has a unique double float system which allows the blades to stay at an even cutting height at all times. The floating top link and spring-assisted body floatation provides a bi-lateral movement, creating minimal stress resistance on the machine. As a result it gives an impressive finish.

The Superfloat topper is available in 2 working widths:

7ft (2.1m)

8ft (2.5m)

The 8ft model is also available in a heavy duty model, for topping in dense vegetation.

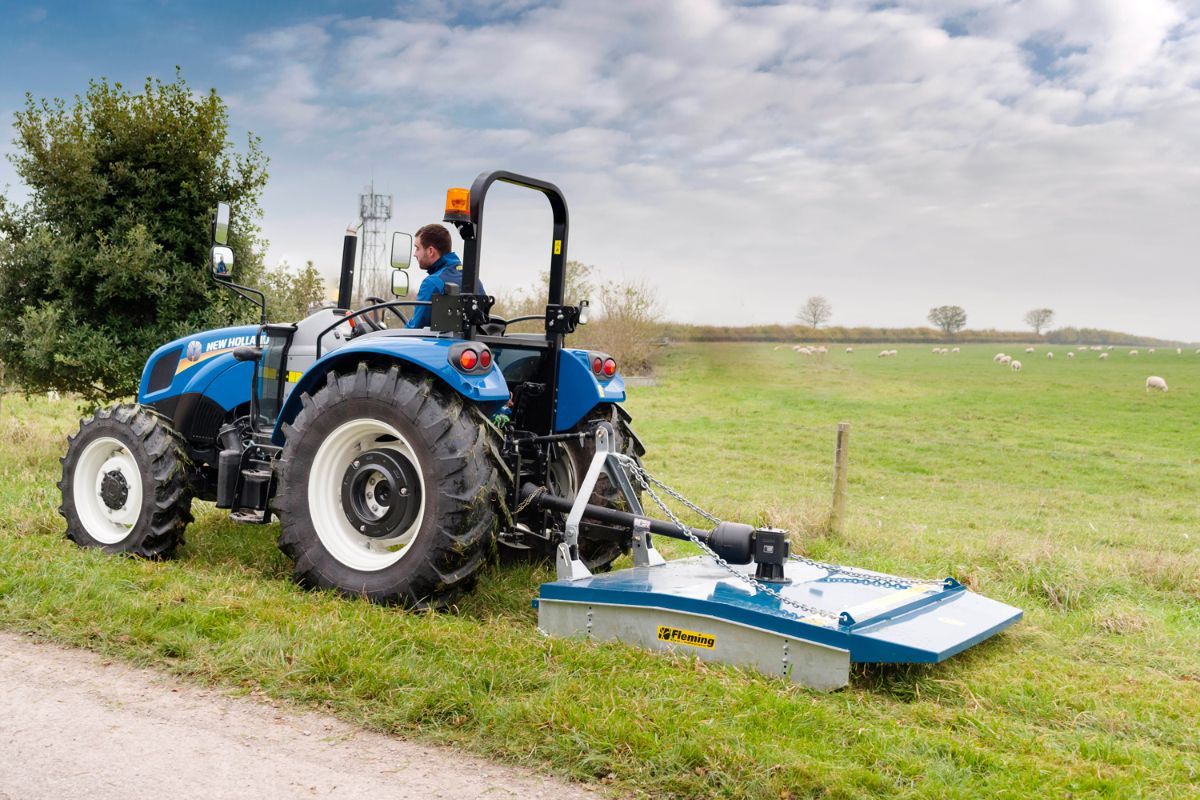

We also offer the superfloat grass topper as a trailed option.

Features

  • Deck fabricated in one-piece from 3mm steel, fitted on a reinforced structural frame along the body of the topper for rigidity
  • Floating top link and hinged body to provide bi-lateral movement for constant ground contact and even cut
  • Counter rotation of twin rotor with heavy duty boron steel rotor fitted with free floating boron steel fluted blades
  • Adjustable cutting height from 50-200mm
  • Hydraulically converts from working to transport position with spring loaded safety latch when in transport position
  • Hydraulic breakaway as standard for ultimate machine protection and speed of operation
  • Comer gearboxes with straight drive-line protected by rubber couplings
  • Bolt on safety guard for easy maintenance
  • PTO over-run and shear bolt protection against rotor impact
  • Double jaw support lift arm brackets with cat. 2 lift arm pins

Heavy Duty Model

  • 8ft heavy duty model comes with 75hp gearbox
  • 8ft heavy duty model fitted with additional straight mulching blades
  • 8ft heavy duty model fitted with heavy duty flexible knuckle drive line protected by rubber couplings

Specifications

TOP7SF
Transport width1830mmCutting width2140mm
No of rotors2No of blades4
No of gearboxes3Gearbox rating55hp
Weight616kgHP required70
TOP8SF
Transport width1830mmCutting width2500mm
No of rotors2No of blades4
No of gearboxes3Gearbox rating55hp
Weight650kgHP required80
TOP8SFHD
Transport width1830mmCutting width2500mm
No of rotors2No of blades8
No of gearboxes3Gearbox rating75hp
Weight670kgHP required80
